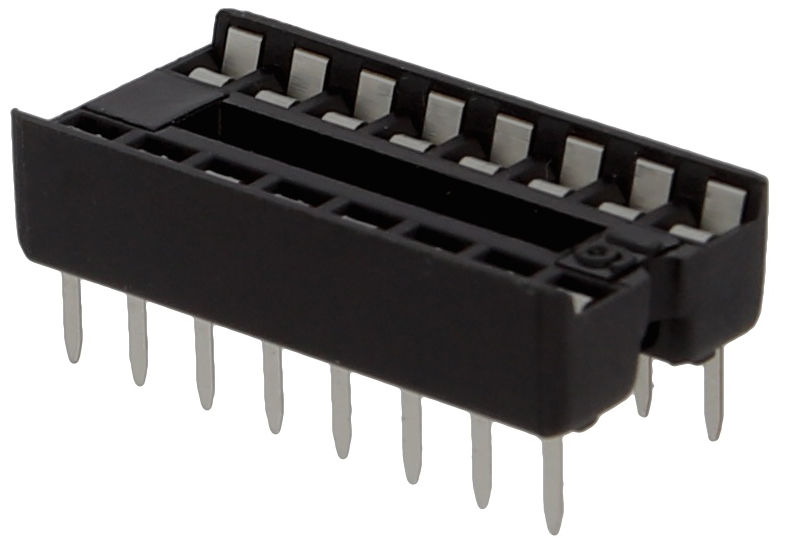

16-pin Audio Socket

16-pin Audio Socket

(0 reviews)

Description:
Highest quality audiophile grade IC socket.

Performance Characteristics:
  • Engaging force: 340 grams maximum (initial)
  • Separating force: 80 grams minimum

    Specifications:
  • Rating. 100VAC
  • Dielectric withstand voltage: 100VAC for 1 minute
  • Insulation resistance: 5000MOhm minimum (at 500V)
  • Operating temperature: -55' Celsius - +85' Celsius

    Material:
  • Phosphor Bronze contacts with 35u nickel underplating and 135u matte tin plating
  • Housing: glass-filled polyester
  • Closed bottom design inhibits flux contamination and solder wicking
  • Overstress stop wall, prevents damage to socket from bent or twisted SIP leads and off-set insertion or extraction of DIP packages
  • Large target area: makes it easy to insert DIP packages
  • Precision made dual-wiping contacts form a gas-tight, high reliability connection.

    • SKU SKU 24630
    Weight 1,50 g
    360 Image 360 degrees image
    Manufacturer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €1,77
    including VAT 19% , [plus shipping]
    Quantity Price*
    10-24 Items €1,71
    25-49 Items €1,65
    50+ Items €1,59

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
