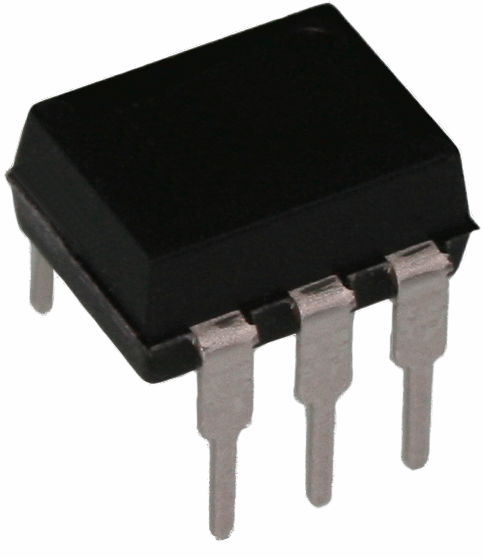

4N28

Product Category: Transistor Output Optocoupler
RoHS: RoHS Compliant Details
Brand:
Package/Case: DIP-6
Output Type: NPN Phototransistor
Number of Channels: 1 Channel
If - Forward Current: 60 mA
Maximum Collector Emitter Voltage: 70 V
Maximum Collector Current: 100 mA
Isolation Voltage: 5000 Vrms
Maximum Collector Emitter Saturation Voltage: 0.5 V
Vf - Forward Voltage: 1.5 V
Vr - Reverse Voltage: 5 V
Pd - Power Dissipation: 150 mW
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
Configuration: 1 Channel
Current Transfer Ratio: 30%
