Alpha 12-DS-STE 100k lin

Alpha 12-DS-STE 100k lin

(0 reviews)

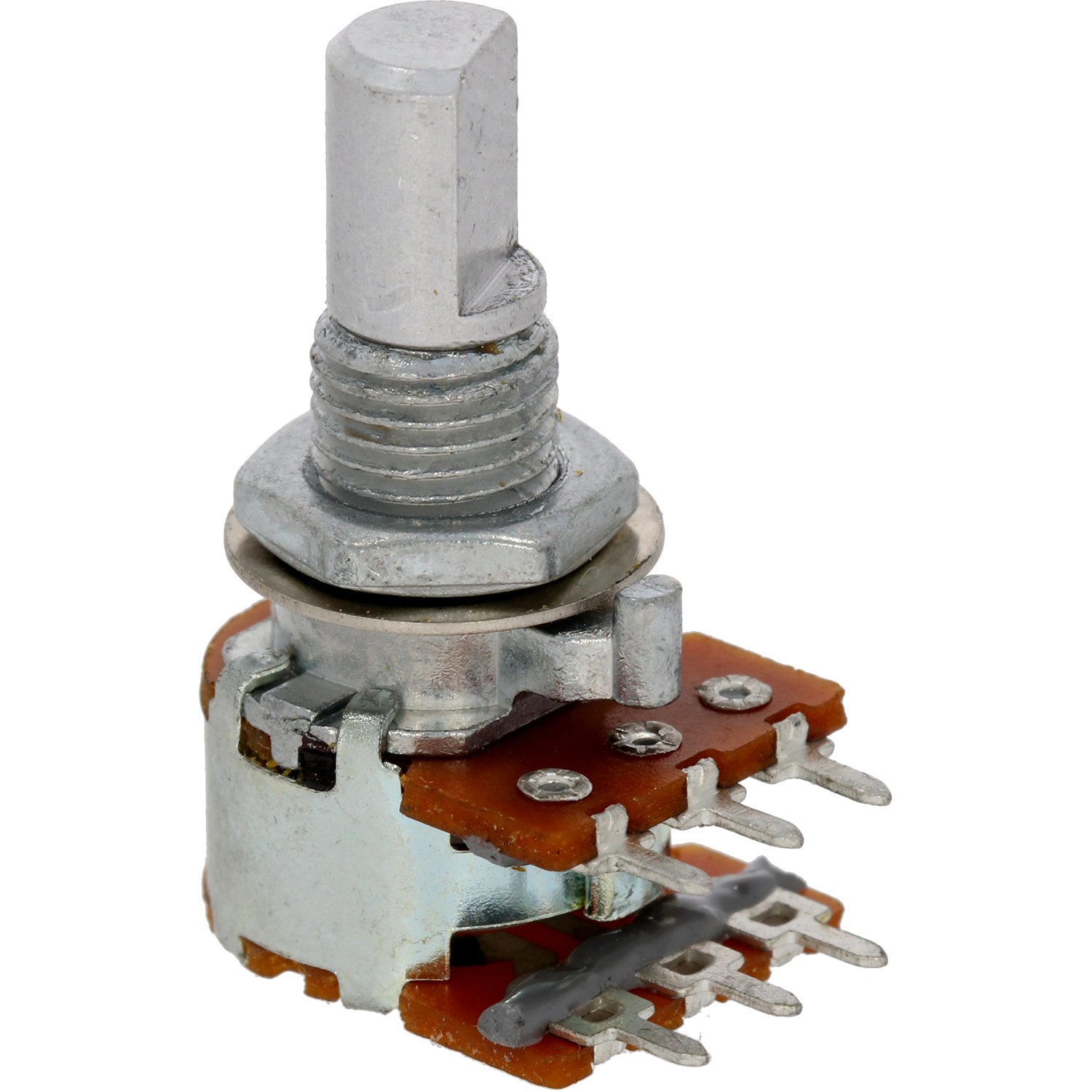

12mm, D-Shaft, Stereo Potentiometer. PC mount.

Specifications:

  • Stereo
  • Metal axis, flattened D-shaft, 6,0mm diameter
  • PC mount
  • Body (DxH): 12x10mm
  • Power rating: 0,08W
  • Rated voltage: 150VAC
  • Rotation angle: 300 degrees +/- 5%
  • Rotational life: 15000 cycles
  • Axis length (including thread): 15mm
  • Thread length: 7mm
  • Thread: M7x0,75

    • SKU SKU 34269
    Weight 7,00 g
    360 Image 360 degrees image
    Manufacturer TAIWAN ALPHA ELECTRONIC CO.,LTD., 9F., No. 1221, Zhongzheng Rd., Taoyuan Dist., Taoyuan City 330010 , Taiwan (R.O.C.), sales@taiwanalpha.com
    Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €6,50
    including VAT 19% , [plus shipping]
    Quantity Price*
    3-5 Items €6,28
    6-9 Items €6,14
    10+ Items €5,96

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
