Alpha 16-DPDT-KN-250k log

Alpha 16-DPDT-KN-250k log

(0 reviews)

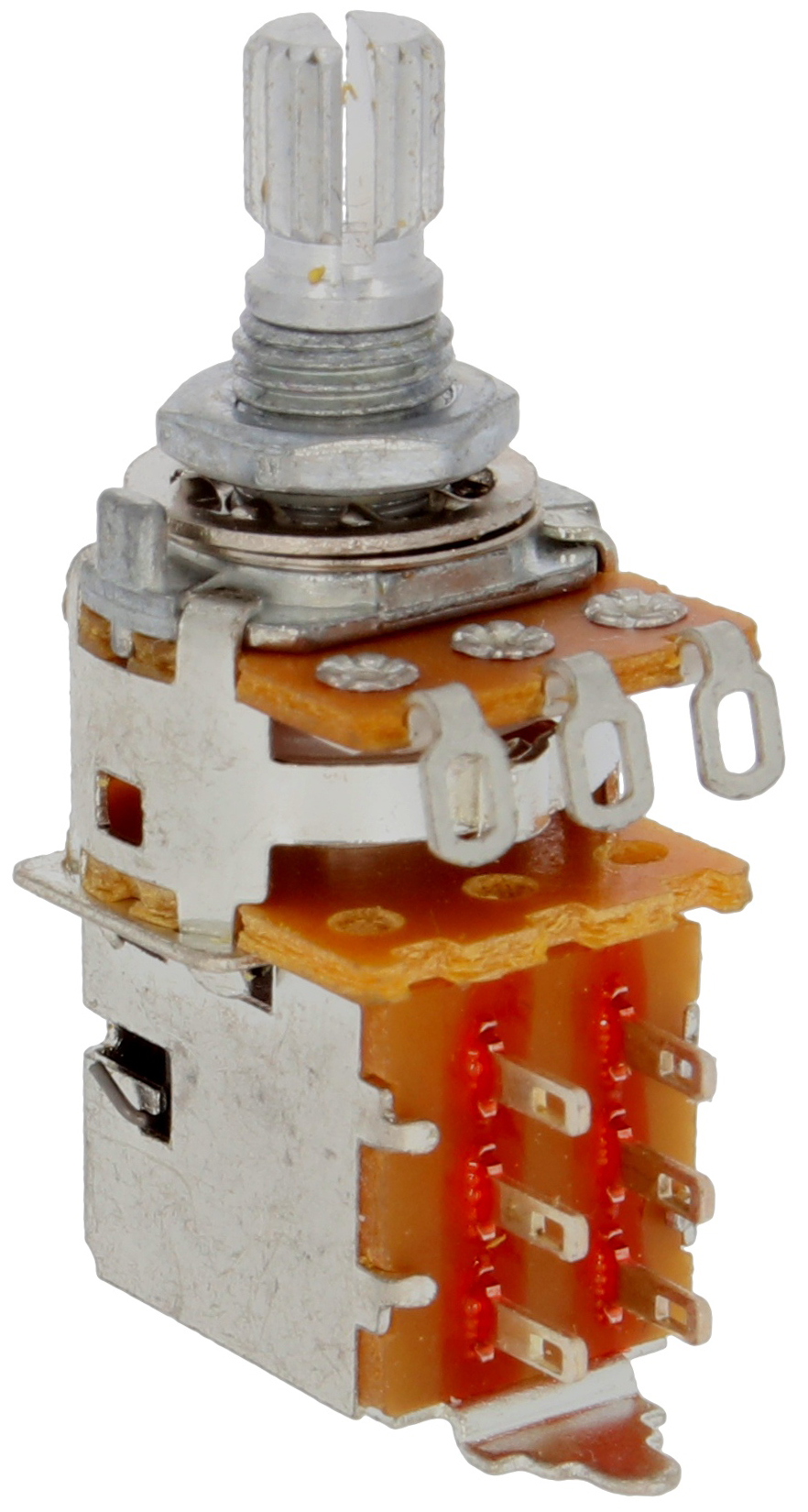

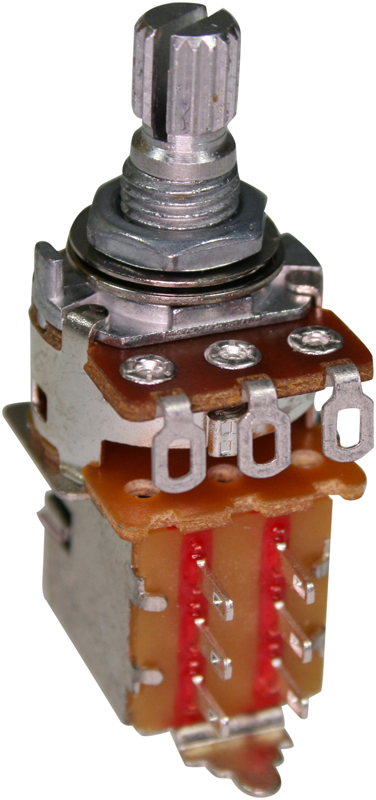

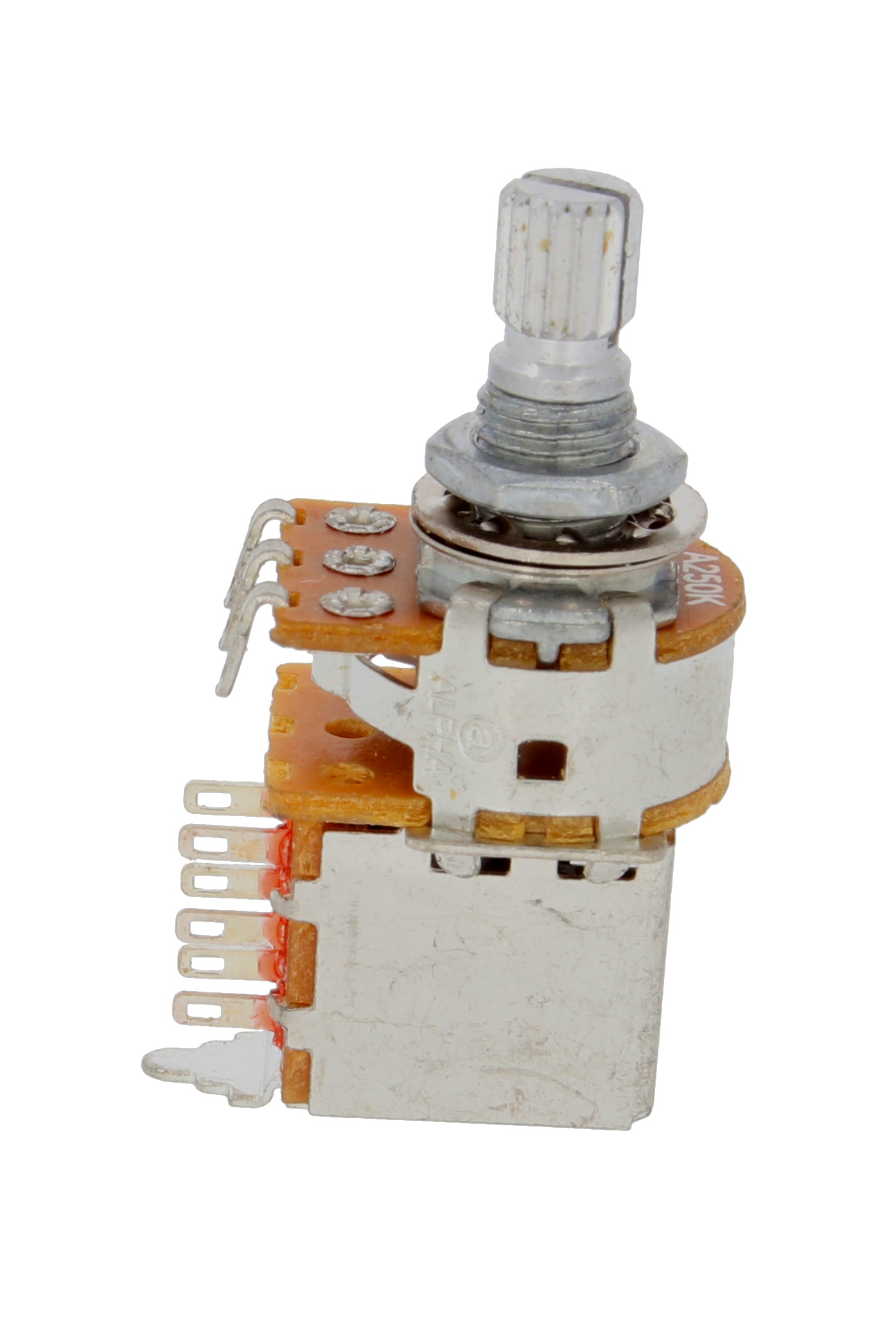

Alpha 16mm, knurled split shaft, mono potentiometer. Solder lugs. With push-pull DPDT switch (30VDC, 0,3A).

Specifications:

  • Mono
  • With pushpull DPDT switch (30VDC, 0,3A)
  • Metal axis, knurled split shaft
  • Material: Carbon Composition
  • Terminal type: solder lugs
  • Body (DxH): 16x26,5mm
  • Power rating: 0,2W
  • Rated voltage: 200VAC
  • Tolerance: +/- 20%
  • Rotation angle: 300 degrees +/- 5%
  • Breakdown voltage: 500VAC for 1 minute
  • Rotational life: 15000 cycles
  • Axis length (including thread): 15,5mm
  • Thread length: 7mm
  • Thread Diameter: M7 x 0,75

    • SKU SKU 34522
    Weight 8,00 g
    360 Image 360 degrees image
    Our price: €4,63
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items €4,39
    10-24 Items €4,17
    25+ Items €3,93

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
