Alpha 16-SL-KN 1k lin

Alpha 16-SL-KN 1k lin

(0 reviews)

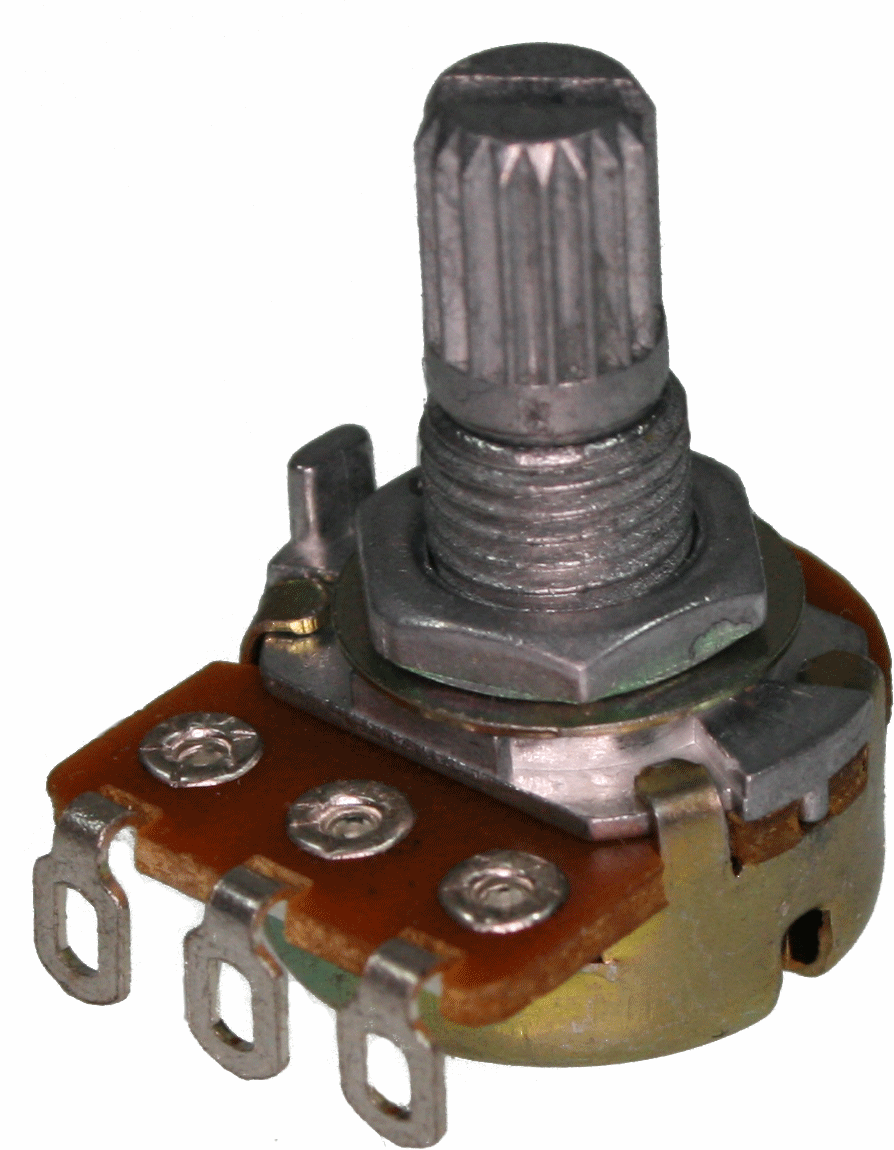

Alpha 16mm, knurled split shaft, mono potentiometer, solder lugs.

Specifications:

  • Mono
  • Metal axis, knurled split shaft
  • Material: Carbon Composition
  • Terminal type: solder lugs
  • Body (DxH): 16x9,5mm
  • Power rating: 0,2W
  • Rated voltage: 150VAC
  • Tolerance: +/- 20%
  • Rotation angle: 300 degrees +/- 5%
  • Breakdown voltage: 500VAC for 1 minute
  • Rotational life: 15000 cycles
  • Axis length (including thread): 15,5mm
  • Thread length: 7mm
  • Thread Diameter: M7 x 0,75

    • SKU SKU 42266
    Weight 6,00 g
    360 Image 360 degrees image
    Manufacturer TAIWAN ALPHA ELECTRONIC CO.,LTD., 9F., No. 1221, Zhongzheng Rd., Taoyuan Dist., Taoyuan City 330010 , Taiwan (R.O.C.), sales@taiwanalpha.com
    Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €1,26
    including VAT 19% , [plus shipping]
    Quantity Price*
    10-24 Items €1,23
    25-99 Items €1,20
    100+ Items €1,17

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
