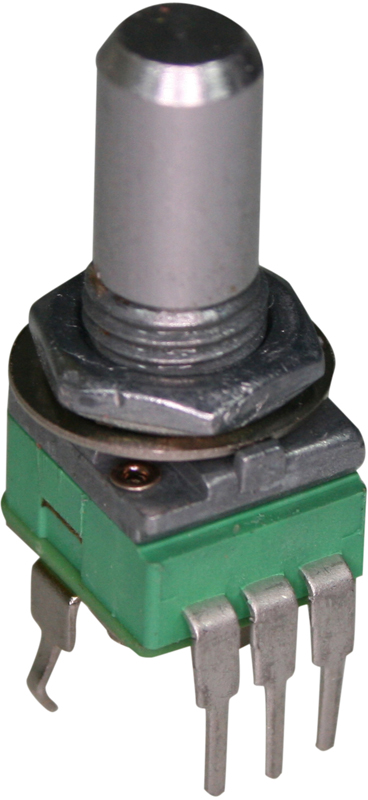

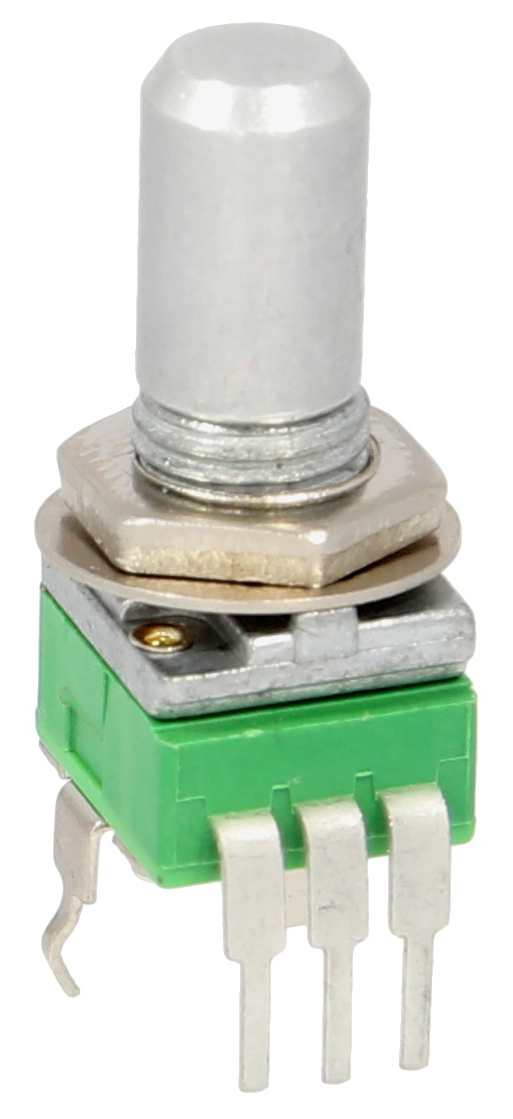

Alpha 9-PC-ANG-1M lin

		(0 reviews)

Type: Mono

Metal axis diameter: 6,3mm

Body diameter: 9mm

Mounting hole diameter: 7,5mm

With right angled PC mount vertical terminals

Rated wattage: 0,05W

Rated voltage: 50VAC

Rotation angle: 300 degrees +/-10%

Tolerance: +/-20%

Insulation resistance: 100M Ohm at 250V DC

Breakdown voltage: 300VAC for 1 minute

Body size (LxWxH): 9x9x7,6mm

Thread: M7

Length (thread): 5mm

Length (axis and thread): 15mm

Full shaft fits all 6,3mm knobs.

SKU SKU 42378

Weight 8,00 g

360 Image

Manufacturer TAIWAN ALPHA ELECTRONIC CO.,LTD., 9F., No. 1221, Zhongzheng Rd., Taoyuan Dist., Taoyuan City 330010 , Taiwan (R.O.C.), sales@taiwanalpha.com

Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com

Our price: €2,45
including VAT 19% , [plus shipping]

Quantity	Price*
5-9 Items	€2,33
10-24 Items	€2,20
25-99 Items	€2,09
100-249 Items	€1,81
250+ Items	€1,62

*Note: including VAT , [plus shipping]

Delivery time: 4-5 days*

Qty

Ask a question about this product
