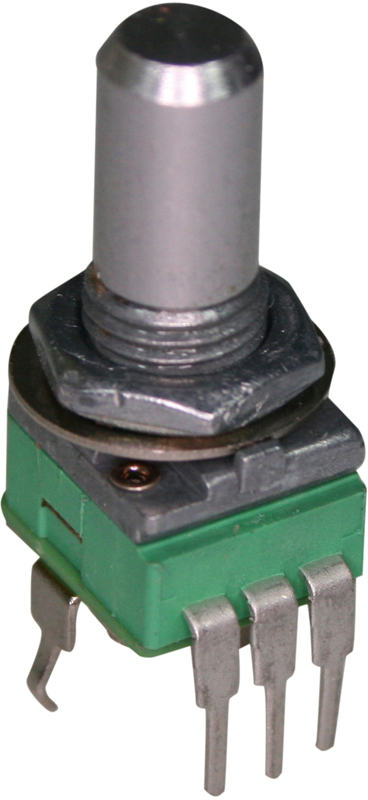

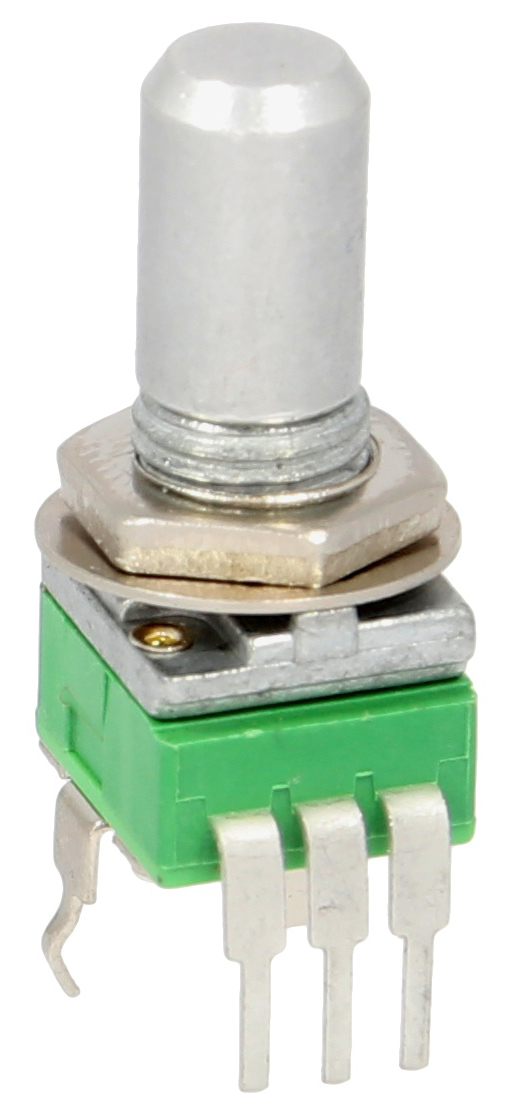

Alpha 9-PC-ANG-20k W-Taper

Alpha 9-PC-ANG-20k W-Taper

(0 reviews)

  • Type: Mono
  • Metal axis diameter: 6,3mm
  • Body diameter: 9mm
  • Mounting hole diameter: 7,5mm
  • With right angled PC mount vertical terminals
  • Rated wattage: 0,05W
  • Rated voltage: 50VAC
  • Rotation angle: 300 degrees +/-10%
  • Tolerance: +/-20%
  • Insulation resistance: 100M Ohm at 250V DC
  • Breakdown voltage: 300VAC for 1 minute
  • Body size (LxWxH): 9x9x7,6mm
  • Thread: M7
  • Length (thread): 5mm
  • Length (axis and thread): 15mm
  • Full shaft fits all 6,3mm knobs.

    • SKU SKU 42394
    Weight 8,00 g
    360 Image 360 degrees image
    Our price: €2,45
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items €2,34
    10-24 Items €2,28
    25+ Items €2,20

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
