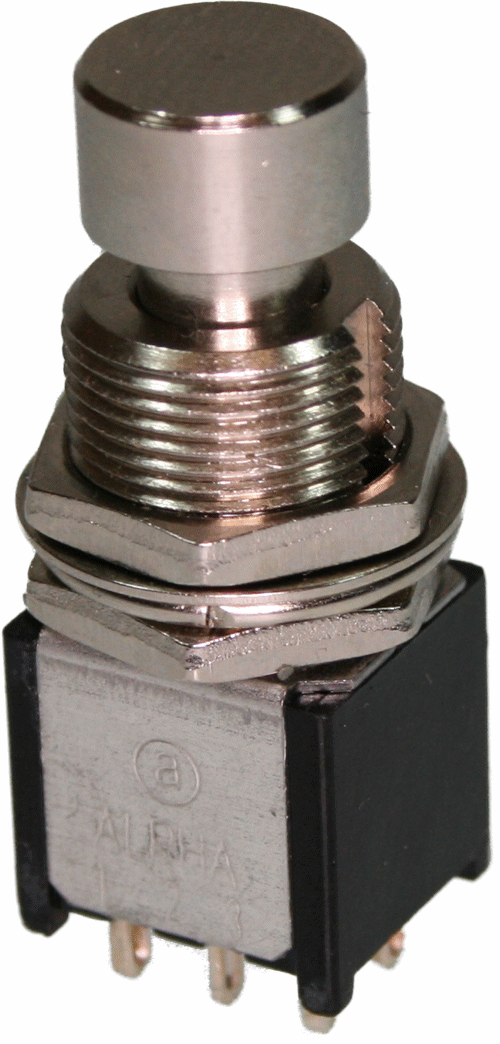

Alpha DPDT, solder lugs

Alpha DPDT, solder lugs
Alpha DPDT
high quality miniature DPDT footswitch.

hole diameter: 12mm
body dimensions: 14x12x16mm
total height: 32mm

6A/125VAC, 3A/250VAX, 4A/30VDC
Contact resistance: 50mOhm, silver contacts
Insularion resistance: 500VDC - 100MOhm min.
Dielectric strength: 1000VAC for one minute
Operating life: 30000 cycles.


SKU SKU 20368
Weight 20,18 g
360 Image 360 degrees image
Manufacturer TAIWAN ALPHA ELECTRONIC CO.,LTD., 9F., No. 1221, Zhongzheng Rd., Taoyuan Dist., Taoyuan City 330010 , Taiwan (R.O.C.), sales@taiwanalpha.com
Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
Our price: €3,18
including VAT 19% , [plus shipping]
Quantity Price*
5-9 Items €3,03
10-24 Items €2,89
25-49 Items €2,76
50-99 Items €2,64
100+ Items €2,39

*Note: including VAT , [plus shipping]

 Delivery time: 4-5 days*
