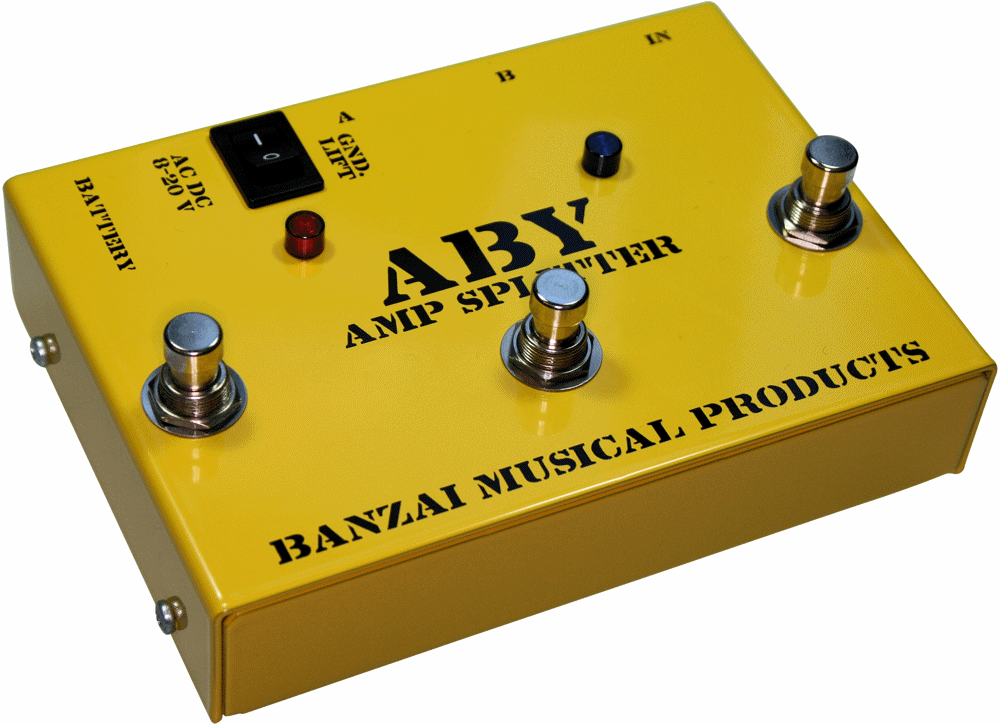

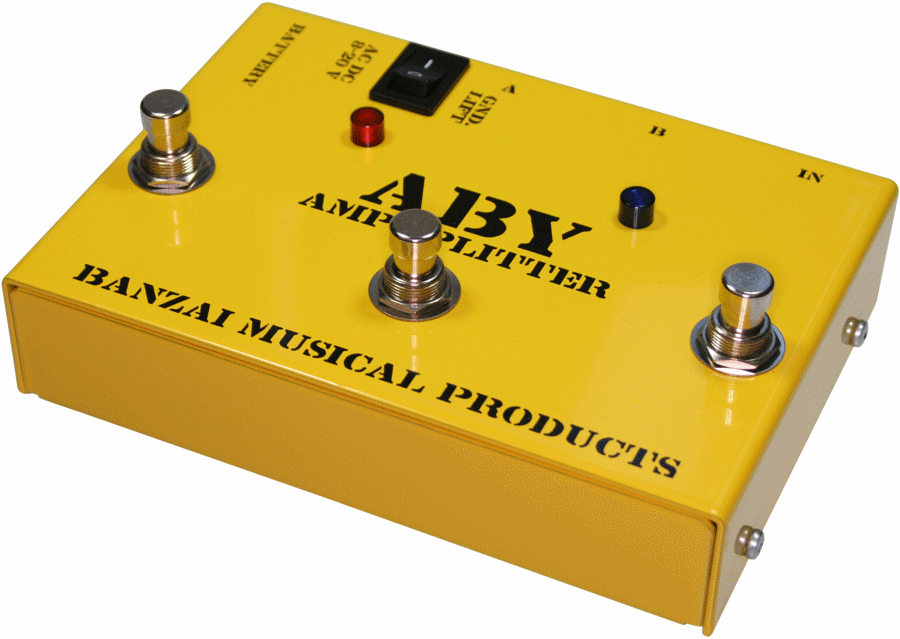

The Banzai ABY Switcher splits the signal. Connect to two amps hum-free and without any signal degradation! Use either A, B, or A and B at the same time without worrying about ground loops and unwanted noise.
Highest quality Lundahl transformers electronically isolate the ground. If you notice hum then use the Ground Lift switch. This effectively breaks ground loops and cancels unwanted hum and noise.
Soft touch momentary switches switch the signal without clicks, pops or other unwanted switching noises. The pedal uses premium gold plated audio signal relays to route the signal.
We combined ultrabright LEDs with newest technology colored Fresnel magnifying lens. The switching status is viewable from any angle even on brightly lit stages.
The Banzai ABY Amp Splitter works with a battery or with *any* power supply between 8 and 20 Volts. You can take the pedal with you and quickly set it up running on a battery, or you can install it on your pedalboard and connect it to your pedalboard's power supply. The pedal can be used with any power supply between 8 and 20 Volts. Polarity does not matter, nor does it matter if if the power is AC or DC. Wherever you are on tour in the world, you will easily find a way to power this device.
The pedal can be easily fixed to the pedalboard. Simply use two screws to secure the switcher to the board.
Use a screwdriver to adjust the trimpots that set the volume on channels A and B. If the volume is at max you will notice a 6dB boost. The trimpots are accessible without opening the pedal.
