Belton 3PDT

Belton 3PDT

(0 reviews)

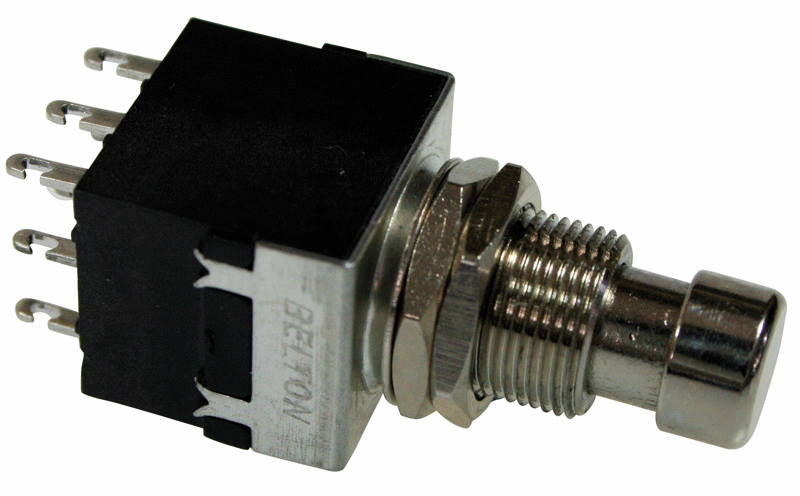

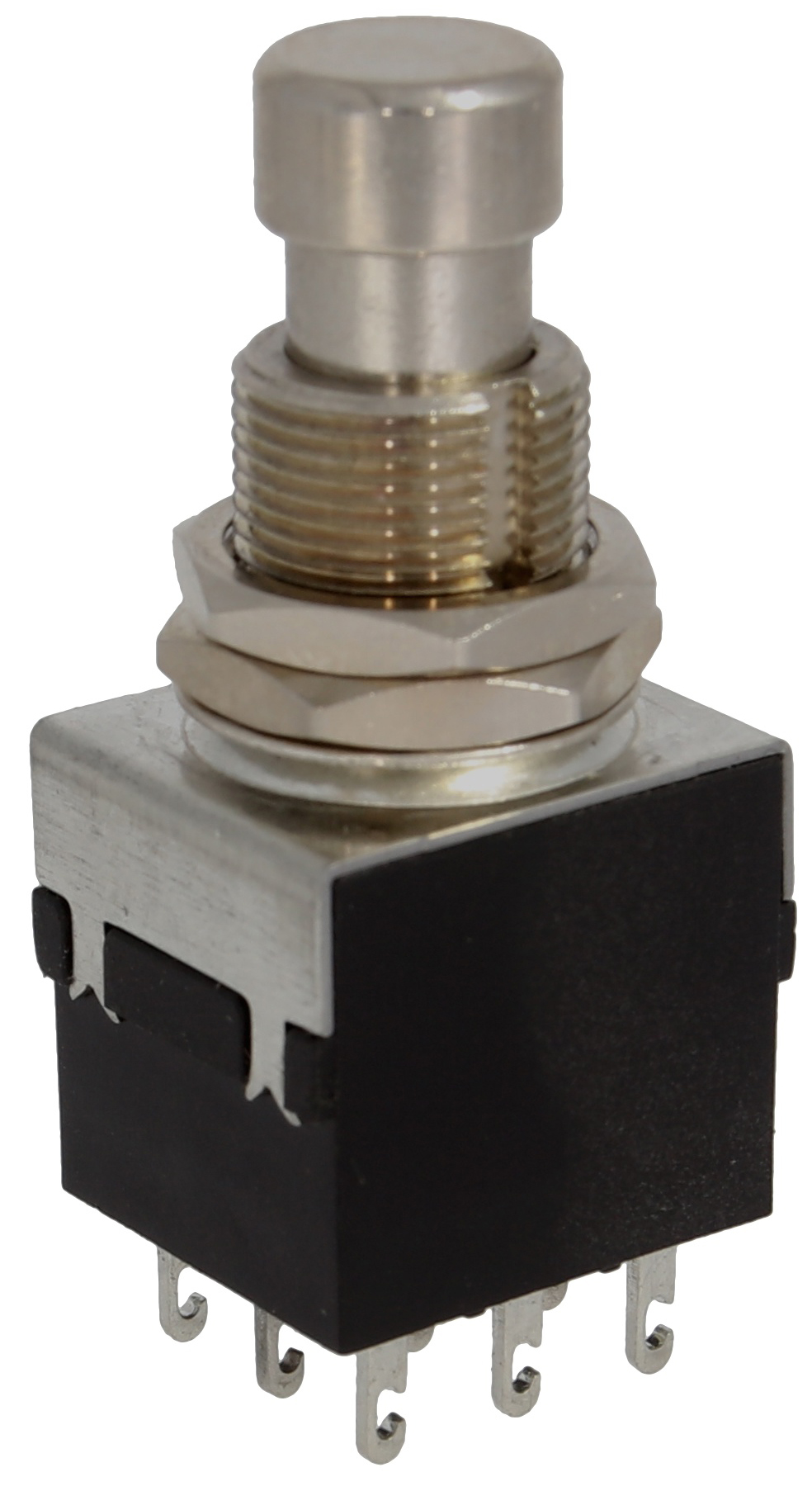

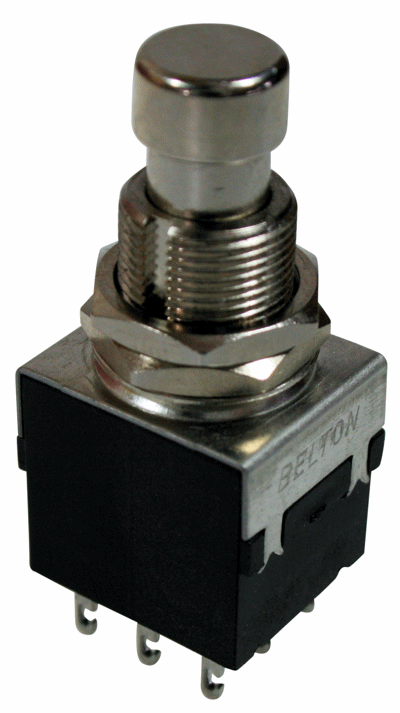

Belton 3PDT Footswitch with solder lugs (that may be used as PCB pins). Belton manufactures probably the highest quality footswitches on the market. They have slightly larger dimensions than most other footswitches, but unsurpassed switching action and long life. Highly recommended for all demanding, professional applications.

Features:

  • Mainly designed for foot pedal and other safety equipments
  • Safety for solder heat shock by using high heat-resistance thermo-plastic resin
  • Suitable for AC/DC rated foot switches with single and double throw operation

    Electrical Specifications:

  • Electrical Rating : 3A 125V AC, 1A 250V AC
  • Contact Resistance : 50 mohms(MAX)
  • Insulation Resistance : 100 Mohoms, 500V DC
  • Withstanding Voltage : 1 min. at 500V AC

    Mechanical Specifications:

  • Size (LxWxH): 17x14x18mm
  • Electrical life : Over 10,000 cycles min
  • Operating Travel : 4.5 mm Max.
  • Operating Force : 1.5 +/- 0.5 Kgf, 3.0 ± 0.5 Kgf
  • Solderability : 280 ± 5℃, 3 sec

    • SKU SKU 43006
    Weight 30,00 g
    360 Image 360 degrees image
    Manufacturer Belton, 1207 Ace High-End Tower 9,233,Gasan Digital 1-ro,Geumcheon-Gu, Seoul, South Korea, belton@belton.co.kr
    Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €7,41
    including VAT 19% , [plus shipping]
    Quantity Price*
    3-5 Items €7,04
    6-9 Items €6,68
    10+ Items €6,30

    *Note: including VAT , [plus shipping]

     not available
