Belton Digi-Log Medium

		(0 reviews)

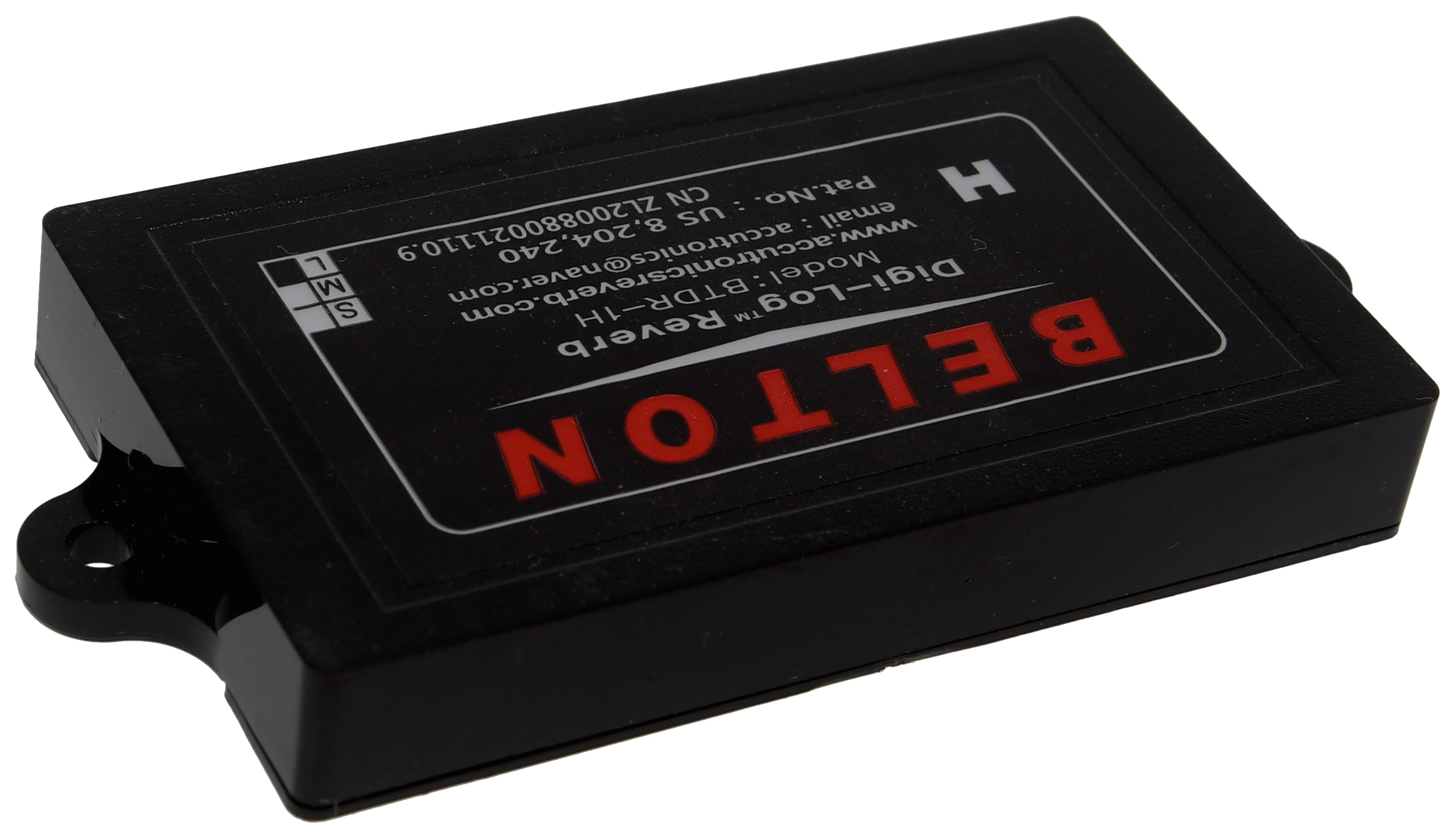

Medium delay time. Belton BTDR 1H medium Digital Reverb with a real spring reverb sound. Small package, fits into a standard Hammond 1590BB size box.
BTDR-1 Digilog Reverb Module. Made by Belton Engineering.

Features:

Simple interface requires only input, output, and ground.

Pin-compatible with BTSA-16G Digital Effector

AC-coupled input and output require no external capacitors

RoHS compliant

Specifications:

Supply Voltage: Min 4,5V, Typ 5,0V, Max 5,5V

Supply current: typ. 60mA (100mA max)

Input voltage: 1,5V max.

Voltage gain: 0dB

Residual noise: -80...-72dBV

Input impedance: 10k

Output impedance: 220k

Operating Temperature: -40.. degrees celsius

Delay time: medium (2,50s)

Dimensions:

Length: 83mm

Width: 39mm

Height: 9,8mm

Mounting hole distance: 74mm

SKU SKU 26668

Weight 200,00 g

360 Image

Our price: €15,59
including VAT 19% , [plus shipping]

Quantity	Price*
2-3 Items	€15,08
4-5 Items	€14,71
6-9 Items	€14,40
10-49 Items	€13,48
50+ Items	€12,88

*Note: including VAT , [plus shipping]

Delivery time: 4-5 days*
