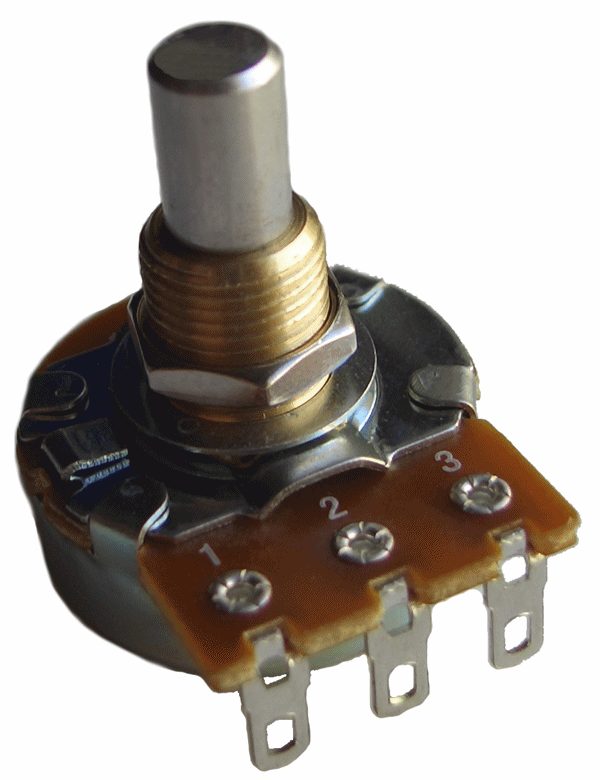

Bourns GTR-FS Pot 500k log

Bourns GTR-FS Pot 500k log

(0 reviews)

Specifications:
  • Taper: Audio (log)
  • Standard Resistance Tolerance: ±20%
  • Operating Temperature: -10°C to °C
  • Power Rating: 0.25W
  • Maximum Operating Voltage: 250V
  • Rotational Noise: 150mV max.
  • Mechanical Angle: 300° ±5°
  • Rotational Torque: 29 g-cm typical
  • Stop Strength: 8 kg-cm min.
  • Rotational Life: 15,000 cycles min.
  • Soldering Condition: Manual Soldering: 300°C within 3 sec. Wave Soldering: 260°C within 3 sec.
  • Hardware: One flat washer and mounting nut supplied per potentiometer with bushing

    Features:
  • Low torque
  • Carbon element
  • Plain or Knurled shaft option
  • ESD wave washer
  • Metal bushing
  • Metal shaft
  • Rear solder lugs
  • RoHS Compliant

    • SKU SKU 24503
    Weight 19,00 g
    360 Image 360 degrees image
    Manufacturer Bourns Electronics GmbH, Einsteinring 30, 85609 Aschheim, Deutschland, https://www.bourns.com/de/support/global-locations
    Our price: €3,94
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items €3,81
    10-24 Items €3,67
    25+ Items €3,49

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
