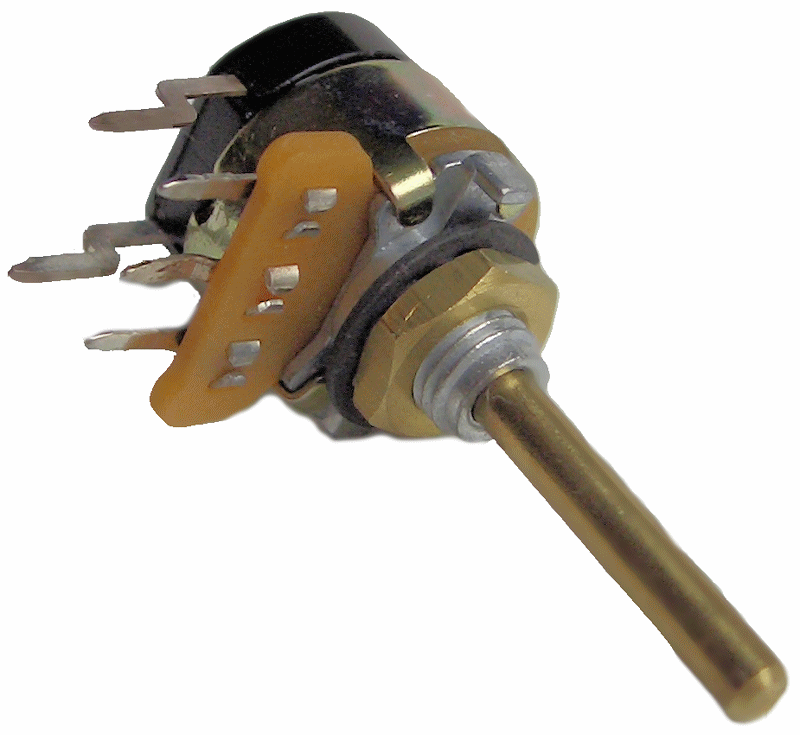

CTS 270-SW-10k-LOG

CTS 270-SW-10k-LOG

(0 reviews)

SPECIFICATIONS:

Power Switch: Rotary, rating: 3A @ 125VAC
  • Resistance Tolerance: ±20%
  • Power Rating Watts: 1/4 Watt through 100K, 1/5 Watt above 100K
  • Voltage Rating: Operating Maximum: 500VDC
  • Mechanical Rotation: 300° ±5°
  • Available Power Switch: Type: Rotary Rating: 3A @ 125VAC (UL Approved)
  • Effective Rotation: 300° (Approx.)
  • Locating Lug: Left Side, Terminals Down
  • Bushing Information: Length: 1/4 inch (6.35mm), Thread Size: 1/4 inch-32, diameter: 1/4 inch (6.35mm)
  • Shaft Information: Length: 1 inch (25.40mm) including bushing, Diameter: .125 inch (3.18mm)

    • SKU SKU 24676
    Weight 15,00 g
    360 Image 360 degrees image
    Manufacturer CTS Electronic Components GmbH, Waldstraße 19, 61118 Bad Vilbel, Deutschland, https://www.ctscorp.com/Contact-Us
    Our price: €8,93
    including VAT 19% , [plus shipping]
    Quantity Price*
    3-4 Items €6,02
    5-9 Items €5,87
    10+ Items €5,72

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
