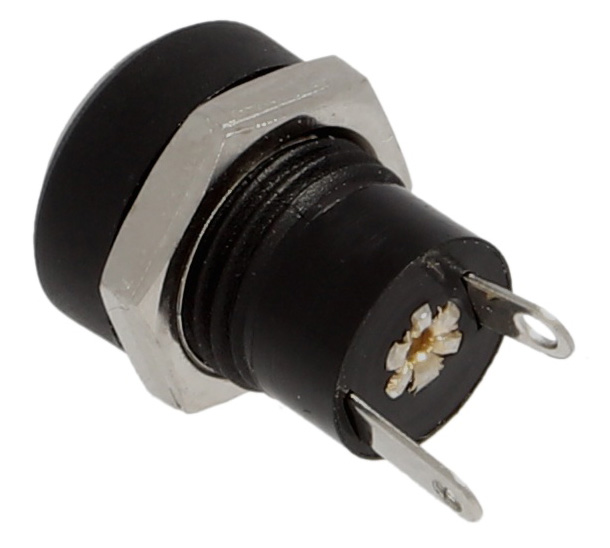

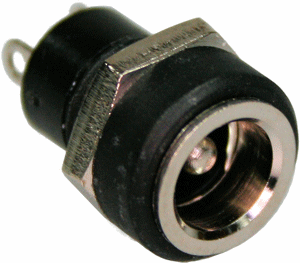

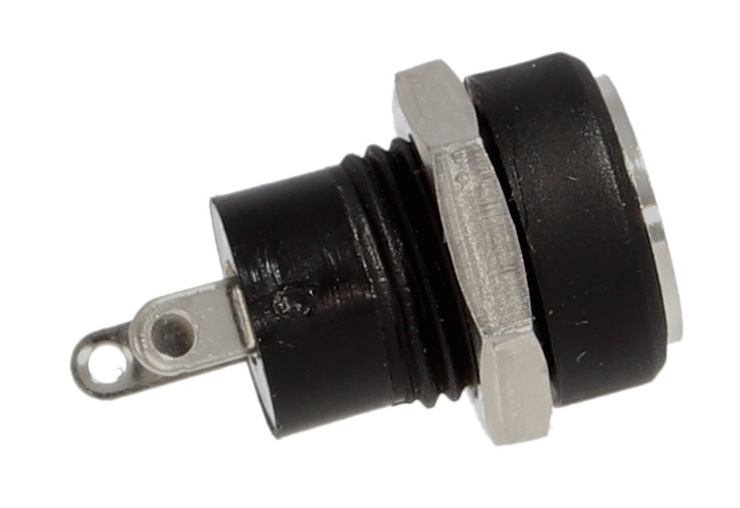

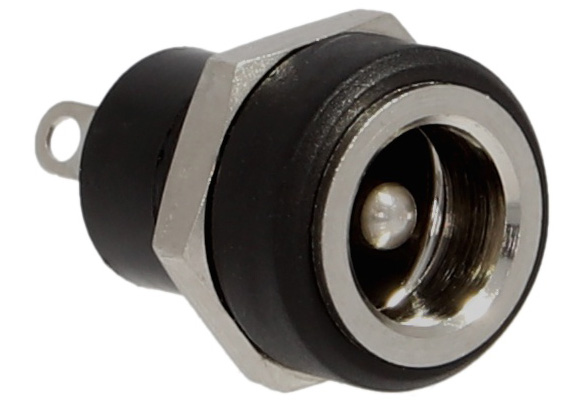

Lumberg PSU 1614-10

Lumberg PSU 1614-10
Chassis mount power supply jack with solder lugs

Specifications:

  • Temperature range -20 °C..+70 °C
  • Body material: PA
  • Contact pin material: CuZn, nickeled
  • Contact spring material: CuSn, nickeled
  • Solder contact material: CuZn, nickeled
  • Nut material: steel, nickeled
  • Diameter opening: 5,7 mm
  • Diameter center pin: 2,35 mm
  • Insertion force: ? 30 N
  • Withdrawal force: 3–30 N
  • Mating with power supply plugs of 2,5mm center hole diameter
  • Mating cycles: ? 5000
  • Contact resistance: ? 30 m?
  • Nominal power: 0,5 A
  • Nominal voltage: 12 V DC
  • Test voltage: 500 V/60 s
  • Insulation resistance: ? 108 ?

    • SKU SKU 31275
    Weight 3,00 g
    360 Image 360 degrees image
    Manufacturer Lumberg Holding GmbH & Co. KG, Im Gewerbepark 2, 58579 Schalksmühle, Deutschland, info@lumberg.com
    Our price: €1,81
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items €1,75
    10-24 Items €1,68
    25+ Items €1,63

    *Note: including VAT , [plus shipping]

     Delivery time unknown*
