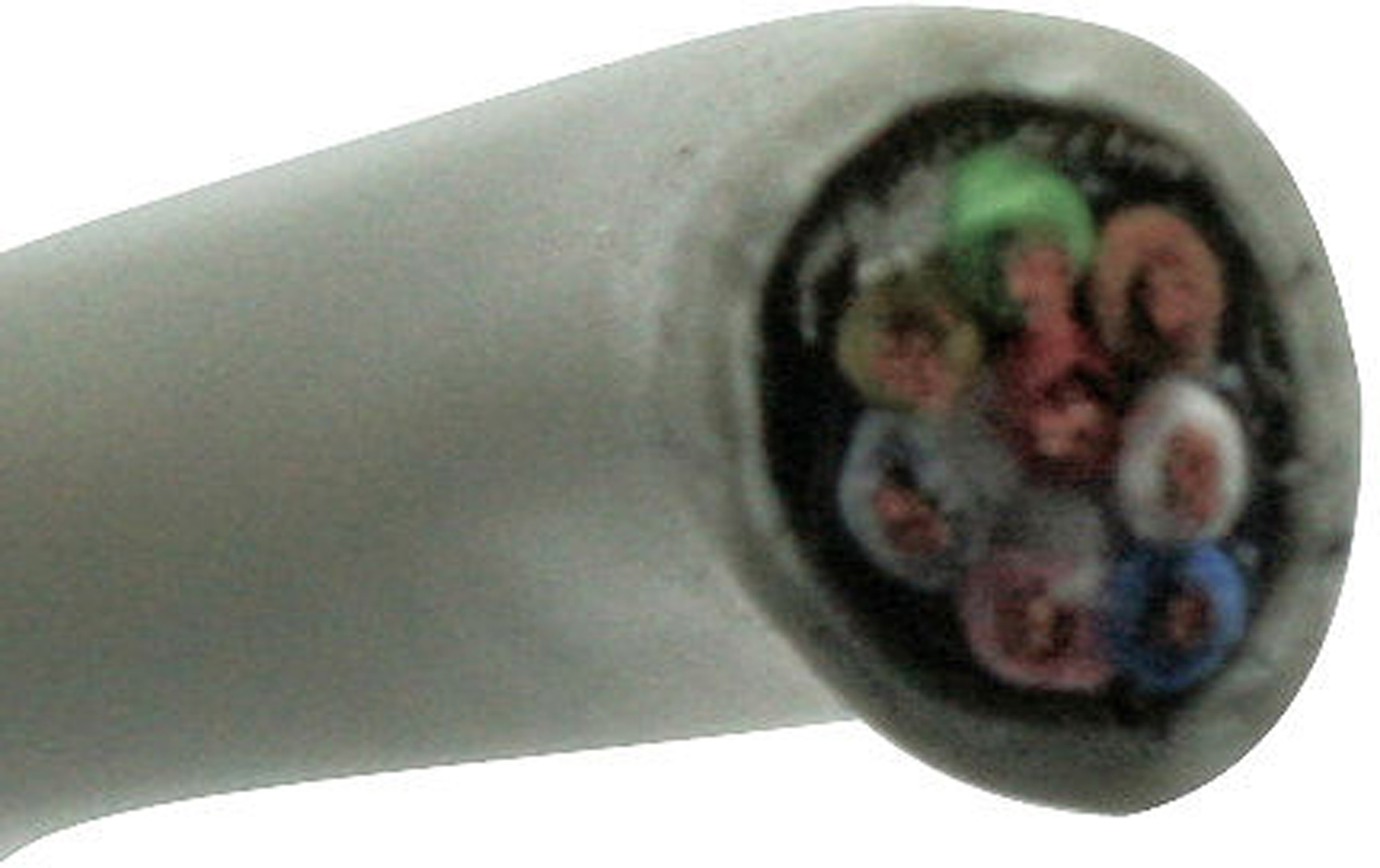

Multicore 8 x 0,14mm-MT

Multicore 8 x 0,14mm-MT

(0 reviews)

Price per meter - enter how many meters you want
Grey.

Specifications:

  • Fulfils norms: DIN VDE 0482 Teil 265-2-1/IEC332.1
  • Shielding: copper mesh 85%
  • Wire outer diameter: 1,1mm ±0,05mm
  • Outer diameter: 5,10mm
  • Wire insulation type: PVC YI 2
  • Colors: DIN 47 100
  • Wire design: 18x0,10mm
  • Outer insulation: PVC YM 2
  • Outer Insulation color: grey (RAL7032)
  • Operating voltage: 300V
  • Testing voltage: 1,5kV
  • Temperature (moving): -10...°C
  • Temperature (still): -30...°C
  • Insulation resistance: 20MWxkm
  • Conductor resistance: 135W/km

    • SKU SKU 25644
    Weight 35,00 g
    Manufacturer KLASING Kabel GmbH, Germanenstraße 1, 85095 Denkendorf, Deutschland, info@klasing-kabel.com
    Our price: €2,34
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items €2,25
    10-24 Items €2,17
    25-99 Items €2,05
    100+ Items €1,67

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
