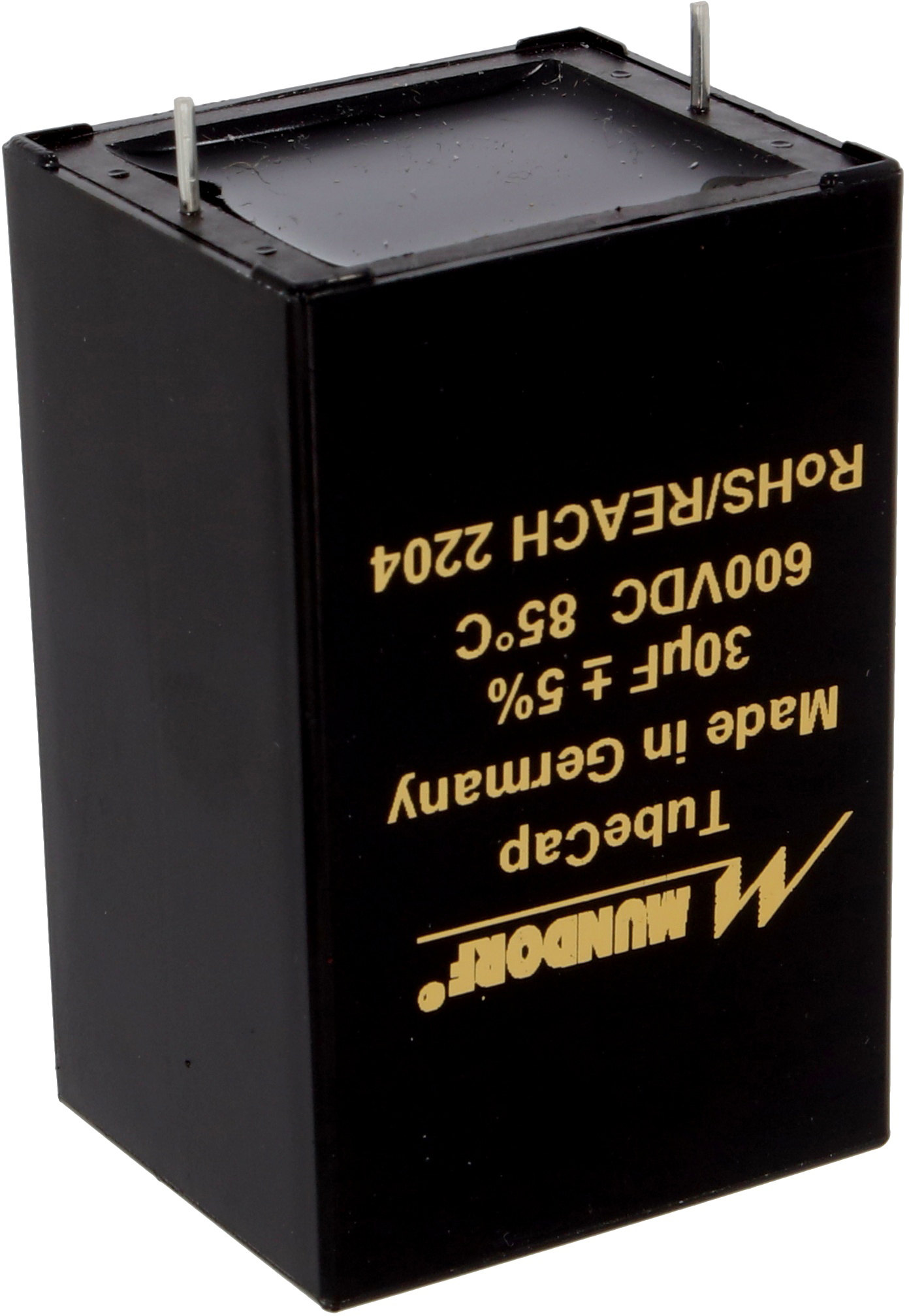

Mundorf TubeCap 30uF 600V

The Mundorf TubeCap is made of next generation metallized polypropylene foil. The material is extremely thin, allowing compact sizes and self-healing. Due to a special formula the self-healing feature is better than usually found in self-healing caps. The TubeCap combines high voltage with low LSR and ESR. It has been developed as high-quality alternative to Aluminum-electrolytic capacitors. It is a high quality replacement and upgrade for existing tube amps and a very good choice for new audiophile designs.
Specifications:

Material: Polypropylene

Voltage: 600VDC

Long life, does not dry out like electrolytic caps

Terminal diameter: tinned copper wire 1 mm.

Size: 30 x 35 x 30 mm

Tolerance: 5%

loss angle: tan(delta) = 0,005 at 1kHz.

Sealed using PU UL 94-V0

Life: 100000h at hot spot (60 degrees Celsius)

Failure rate: 1 fit
