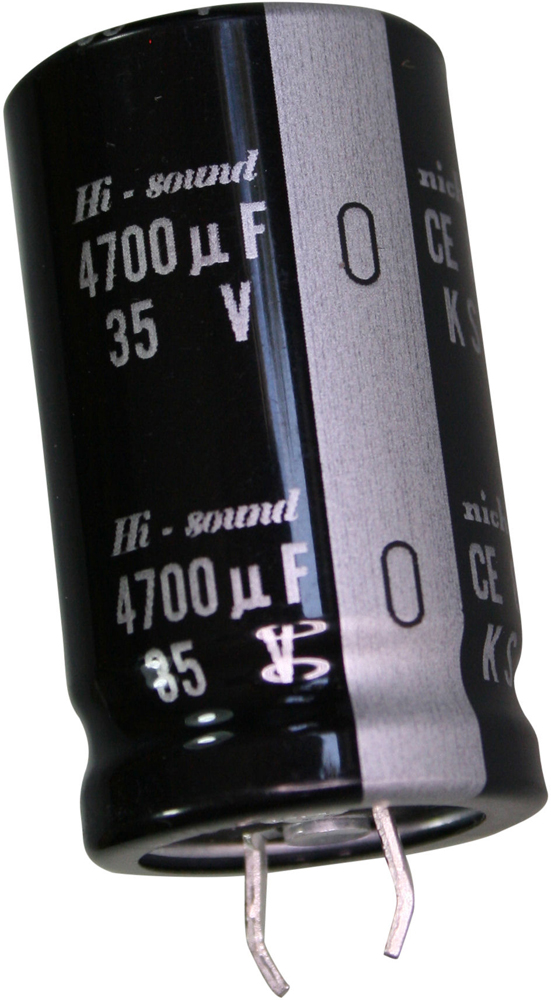

Nichicon KS 4700uF 35V

		(0 reviews)

Nichicon KS Series 4700uF, 35VV DC.
Aluminium electrolytic capacitors. Dimensions (D x L) mm: 20 x 35mm.

Rated ripple current (Arms) at 85°C 120 Hz: 2,1

Features

Snap-in Terminal Type, For Audio Equipment, Smaller-sized

Smaller and high-tone quality than KG series TYPE-1 grade

An effect to tone quallity improvement by replacement from a small standard product to use

Compliant to the RoHS directive (2011/65/EU)

Specifications

Category Temperature Range: - 40 to +85°C

Rated Voltage Range: 25 to 100V

Rated Capacitance Range: 680 to 33000uF

Capacitance Tolerance: ± 20% at 120Hz, 20°C

Leakage Current: After 1 minute's application of rated voltage, leakage current is not more than [sq. rt.(3CV)] uA, [C : Rated Capacitance(uF), V : Voltage ( V ) ]

Shelf Life: After storing the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above

Marking: Printed with silver color letter on black sleeve

SKU SKU 40526

Weight 25,00 g

360 Image

Manufacturer Nichicon Austria GmbH, Businesspark Marximum,Modecenterstrasse 17, Unit 2-7-A, 1110 Wien, österreich, office@nichicon.at

Our price: €7,44
including VAT 19% , [plus shipping]
