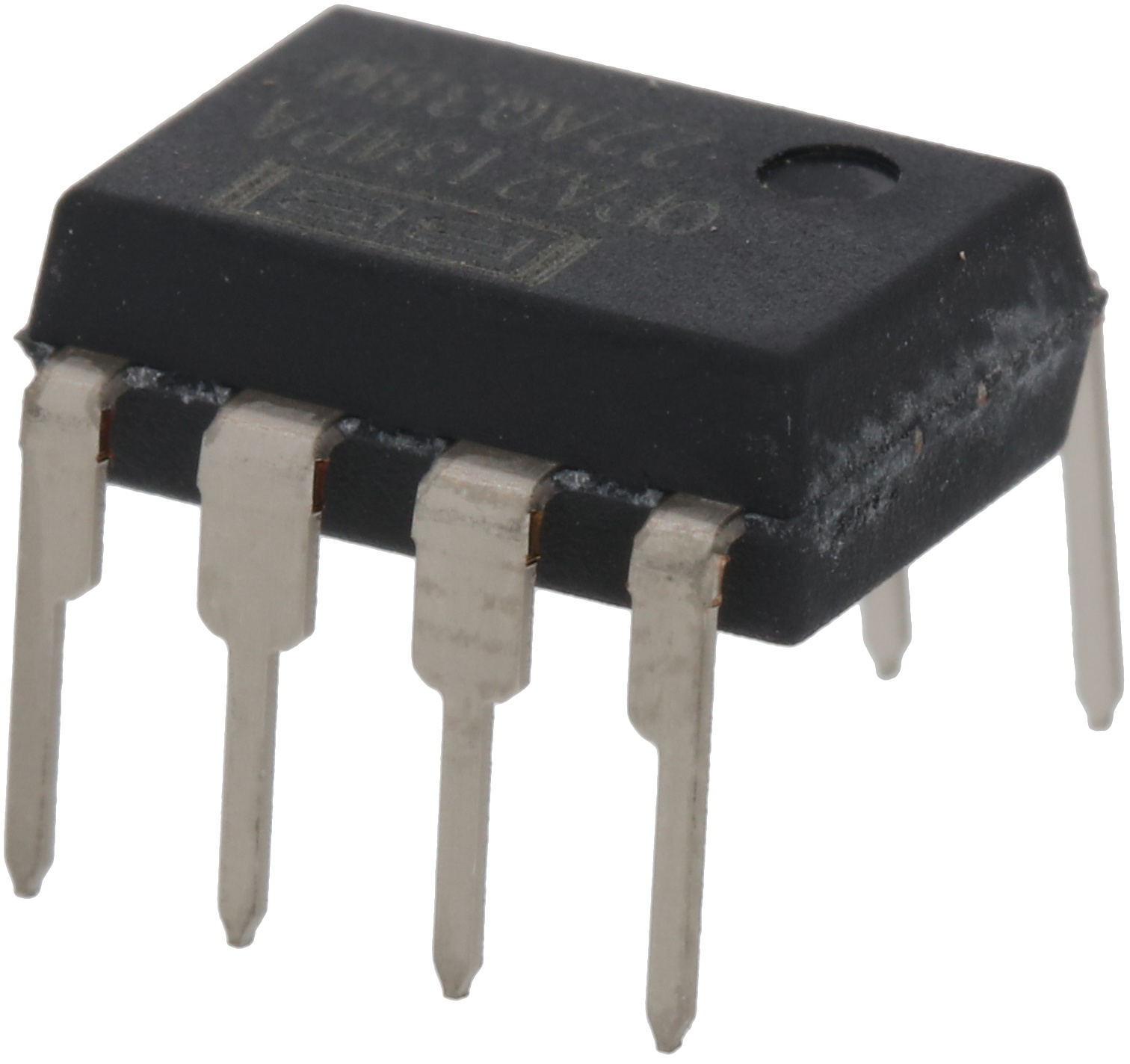

OPA2134PA

OPA 2134 PA
Dual Precision Fet OP DIP8

Burr Brown SoundPlus Audio Operational Amplifier with ultra-low distortion, low noise and Precision. A true FET input stage is incorporated to provide superior sound quality and speed for exceptional audio performance. This, in combination with high output drive capability and excellent DC performance, allows for use in a wide variety of demanding applications. In addition, the OPA134 has a wide output swing, to within 1 V of the rails, allowing increased headroom and making it ideal for use in any audio circuit.

Specifications:

Superior Sound Quality

Ultra Low Distortion: 0.00008%

Low Noise: 8 nV/√Hz

True FET-Input: IB = 5pA

High Speed:

Slew Rate: 20 V/µs

Bandwidth: 8 MHz
