PEC MIL-STE-LIN-10k

PEC MIL-STE-LIN-10k

(0 reviews)

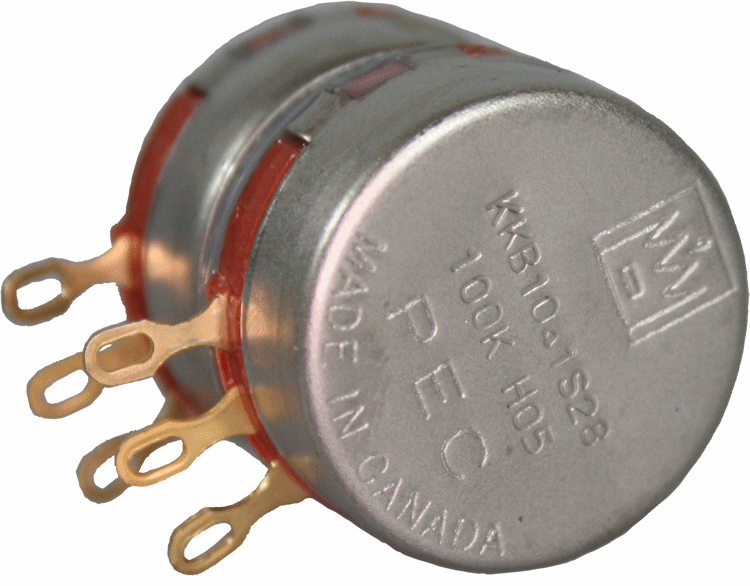

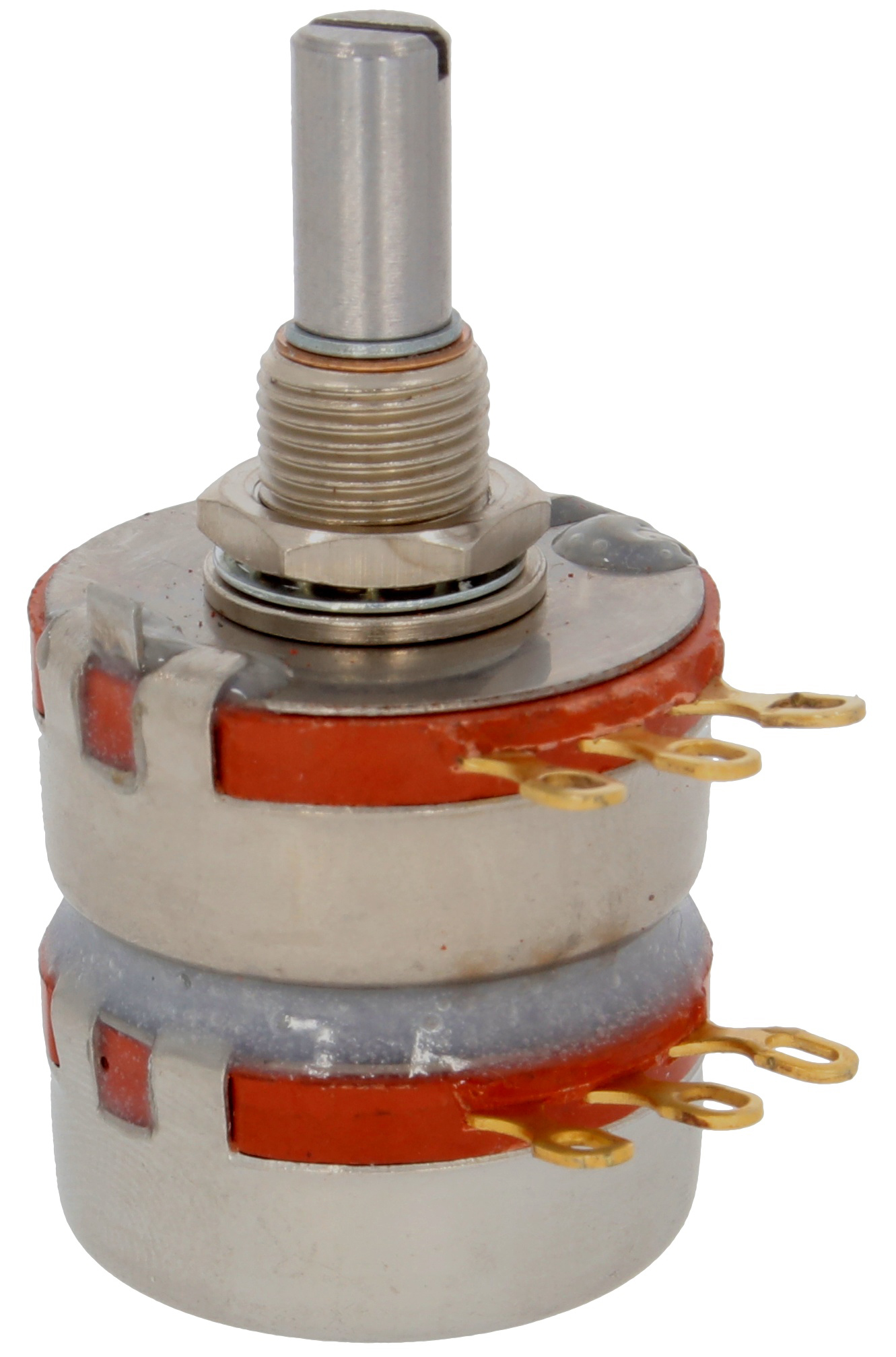

MIL Style 2W carbon potentiometer. Made by PEC Canada. Metal housing, stainless steel shaft.

Specifications:

  • Body diameter: 28,45mm
  • Body height: 28,8mm
  • Shaft length: 12,7mm
  • Thread length: 9,5mm
  • Thread diameter: 3/8 inch (9,5mm)
  • Shaft diameter: 1/4 inch (6,3mm)
  • 2W Carbon Potentiometer
  • Resistance Tolerance: ±10%
  • Power Rating: 2 Watts @ 70°C, Derate to 0 Watt @ 120°C
  • Dielectric Strength: 900V RMS
  • Working Voltage: 500 volts, but power not to exceed rating
  • Operating Temperature: -65°C ~ 125°C
  • Mechanical Rotation: 314° QPL listed under MIL R 94 Specifications.
  • Metal housing, stainless steel shaft.
  • Hardware included

    • SKU SKU 26709
    Weight 40,00 g
    360 Image 360 degrees image
    Manufacturer Precision Electronic Components Mfg. Co., Inc., 1990 S. Grove Ave., Ontario, CA 91761, USA, sales@pecmfg.com
    Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €54,22
    including VAT 19% , [plus shipping]
    Quantity Price*
    2-3 Items €48,44
    4-5 Items €45,89
    6+ Items €43,34

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
