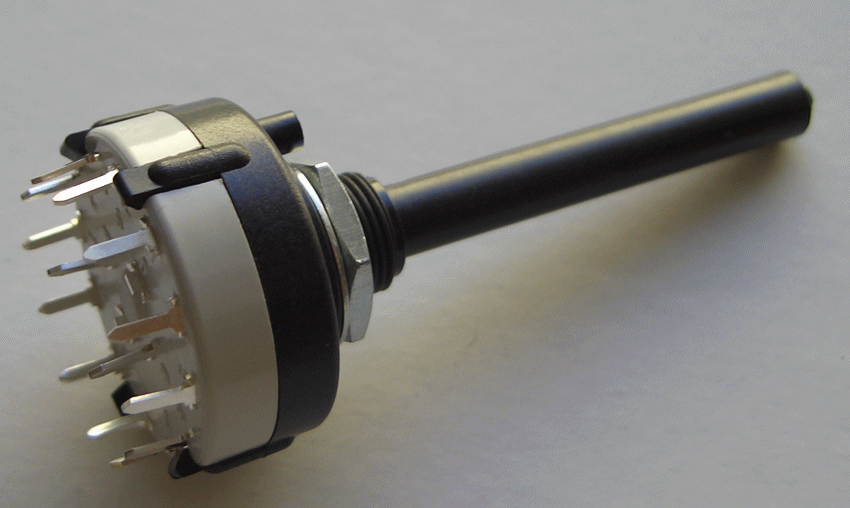

Rotary Switch, 4x3, Pins

Rotary Switch, 4x3, Pins

(0 reviews)

4 pole 3 positions, (the total number of positions is selectable up to 3. Fix the number of positions using the ring)
Sealed Enclosure

Specifications:

  • Operating voltage: 250V AC/DC
  • Test voltage: 1500V
  • Switching current 250V AC/DC: 0,15A
  • Insulation resistance, 500V DC: >999MOhm
  • Contacts: brass
  • Contact surface: silver plated
  • Body: Polyamid 6.6
  • Life: >10000 cycles

    • SKU SKU 16256
    Weight 11,56 g
    360 Image 360 degrees image
    Manufacturer Lorlin Electronics Ltd., Harwood Road, Littlehampton, West Sussex, England, BN17 7AU, Grossbritannien, sales@lorlin.co.uk
    Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €3,36
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items €3,27
    10-24 Items €3,17
    25+ Items €3,07

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
