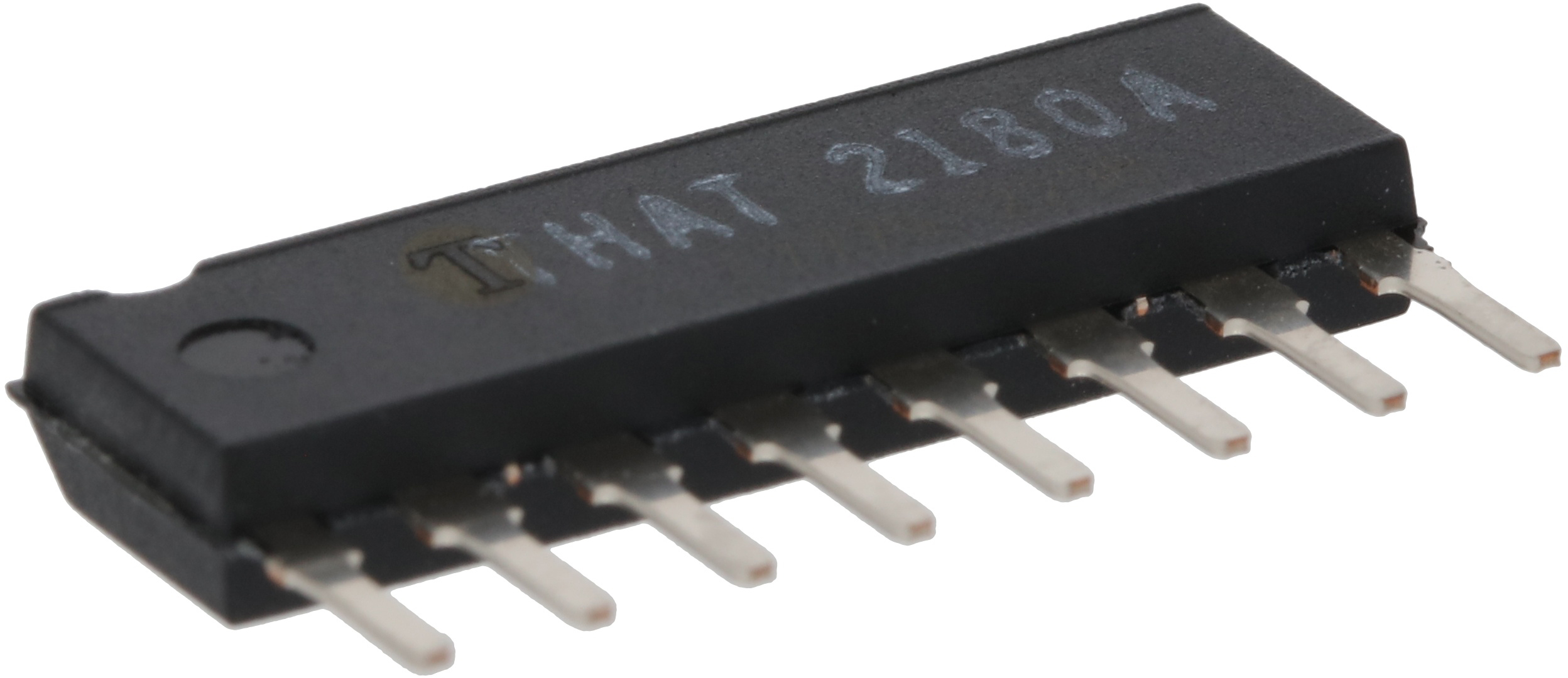

THAT 2180AL08-U

THAT 2180 Series integrated-circuit voltage controlled amplifiers (VCAs) are very high-performance current-in/current-out devices with two opposing-polarity, voltage-sensitive control ports. They offer wide-range exponential control of gain and attenuation with low signal distortion. The parts are trimmed at wafer stage for low THD and control-voltage feedthrough without further adjustment.

Specifications:

Wide Dynamic Range: >120 dB

Wide Gain Range: >130 dB

Exponential (dB) Gain Control

Low Distortion: < 0.01 % (2180A)

Wide Gain-Bandwidth: 20 MHz

Dual Gain-Control Ports (pos/neg)

Pin-Compatible with 2150-Series
