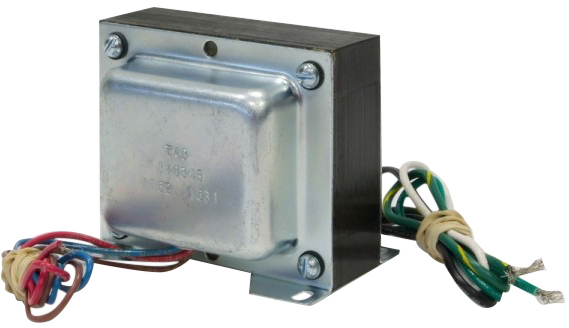

Transformer T-OP-018343

Direct replacement Output Transformer, max. 70 Watts. Impedance: 2, 4, 8 Ohm. Tubes: 2 x 6L6GC/5881/7581a/KT66. Application: Fender Bassman 59 (4x10inch speakers), Concert II, Super Reverb, Bassman 70, Ultralinear. Traditonally made on a paper bobbin for a superior tone. Replaces/upgrades 125A9A, 45249, 022855, 125A13A, 022871.

Secondary 2, 4 + 8 Ohm, max. 70 Watts
Superior tone with paper layer design

perfect upgrade for
- Fender Bassman '59
- Fender Bassman LDT
- Fender Super Reverb (45W Version AB763 etc.)
- Fender Vibroverb (45W Version AB763 etc.)
- Fender Concert II (Fender 'Rivera' Series 1980s)

and perfect Ugrade for:
- Fender Hot Rod DeVille (direct replacement for 004-1754-000)
- Fender Blues DeVille (direct replacement for 004-1754-000)

the 018343 is used in several TAD Amp Kits like 5F6 Bassman, 5E8 Low Power Twin, BF Super Rev, BF Vibroverb (subject to change)

replacement for the 125A13A (022871) für den Fender Bassman 50, 6G6A, 6G6B, 50W

also perfect for Mesa Boogie MK I, MK II, MK III with 60W (562060)
Replaces the 560039 transformer of the Acoustic G60T and Mod 162.

Spare part for the TF125 in the Hughes&Kettner TUBE 50

primary impedance 4.2k

Lamination: 3 3/4 inch, Stack: 1 1/4 inch

Mounting on: 3 1/4 inch x 2 inch

Overall dimensions: W x H x D: 96mm x 79mm x 80mm


Primary:
A1 Blue
HT Red
A2 Brown

Secondary:
0 Ohm Black
2 Ohm White
4 Ohm Yellow/Green
8 Ohm Green
