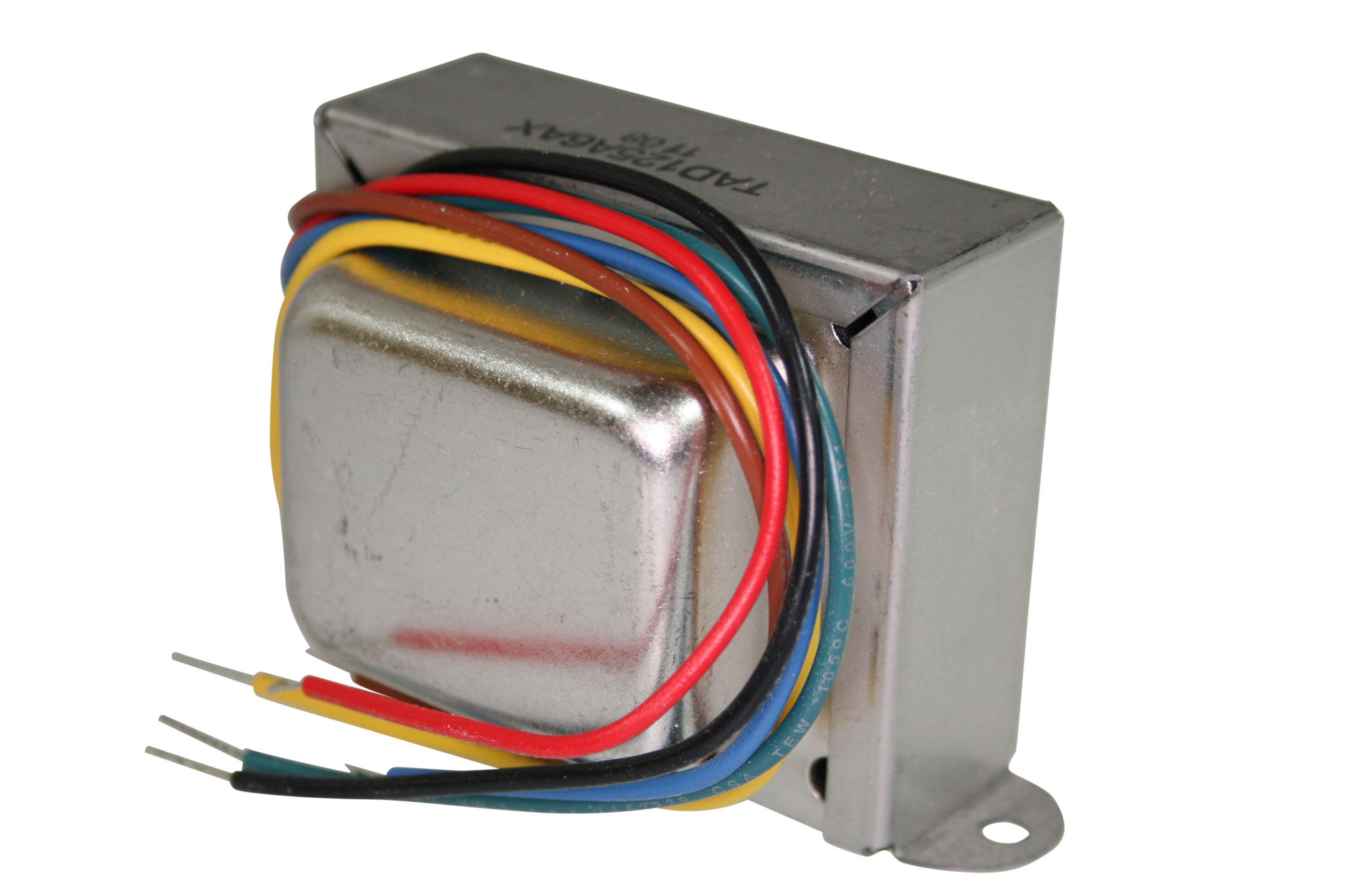

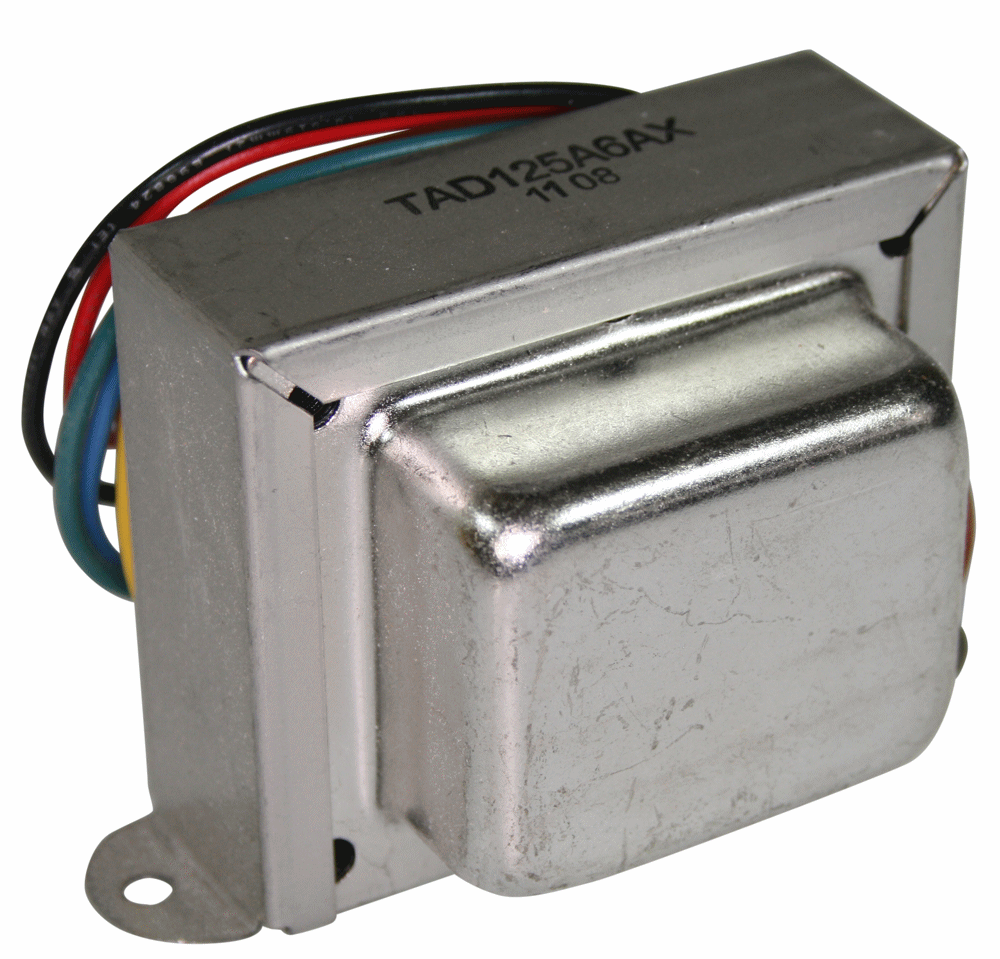

Transformer T-OP-125A6AX

Direct replacement Output Transformer, 50W. Impedance: 4, 8 Ohm. Tubes: 2 x 6L6GC / 5881. Application: Fender Pro Reverb, Vibrolux Reverb, Vibroverb, Tremolux.
Exact Transformer for Fender blackface and silverface models: Bandmaster, Bandmaster Reverb (fits TFL5005D also), Pro Amp (8 Ohm), Pro Reverb Amp, Vibrolux (8 Ohm), Vibrolux Reverb, Tremolux (all schematic type AA763+AB763+AA1069)Also fits brownface Vibrolux 6G11-A. Replaces Fender P/N 036968 + 125A7A / 022848

Made in USA with vintage correct paper bobbin wound with superior tone!

primary impedance: 4.2K

Mounting: 90.5mm

primary
A1 blue
HT red
A2 brown

secondary
0 Ohm black
4 Ohm yellow
8 Ohm green
