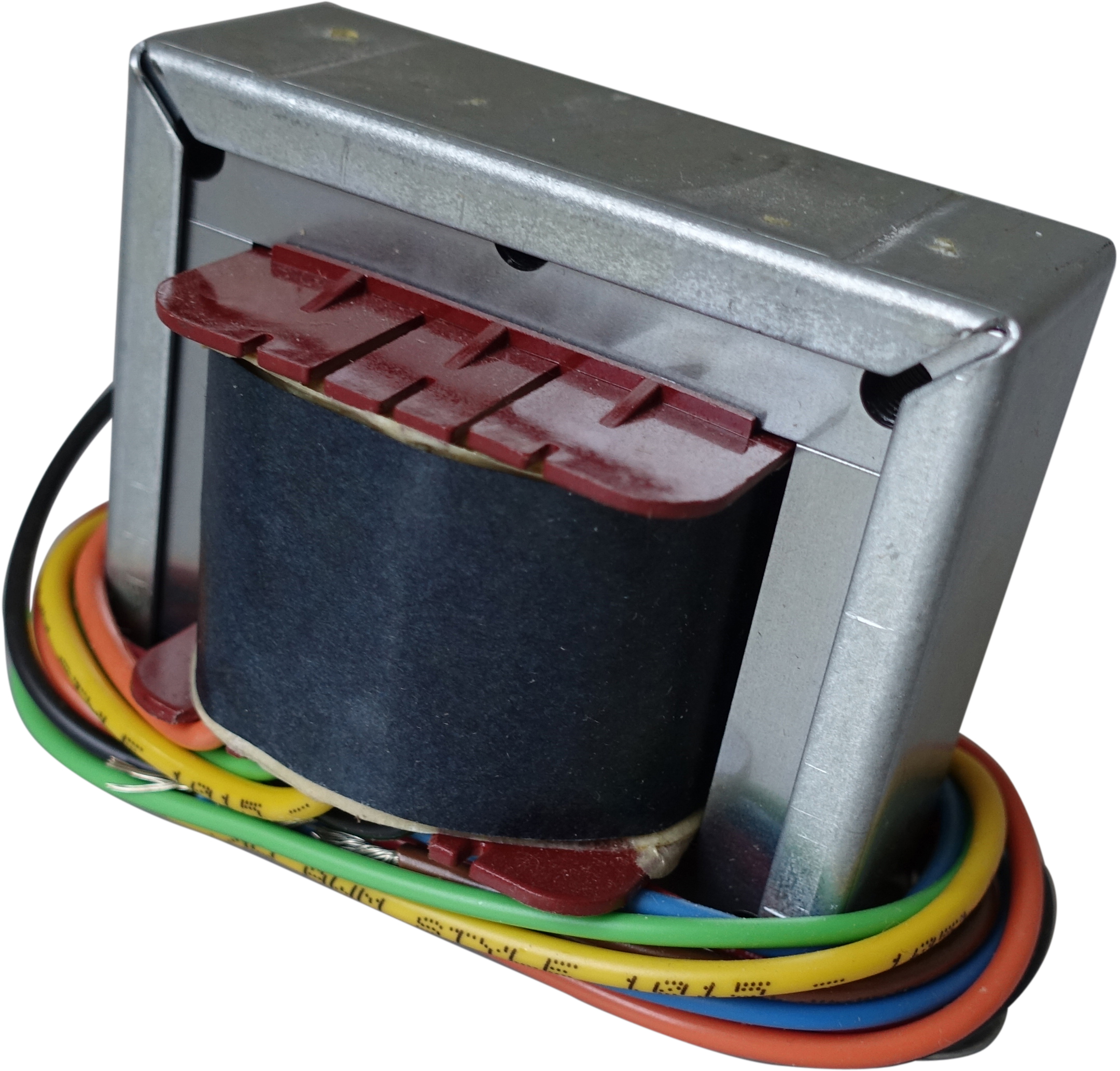

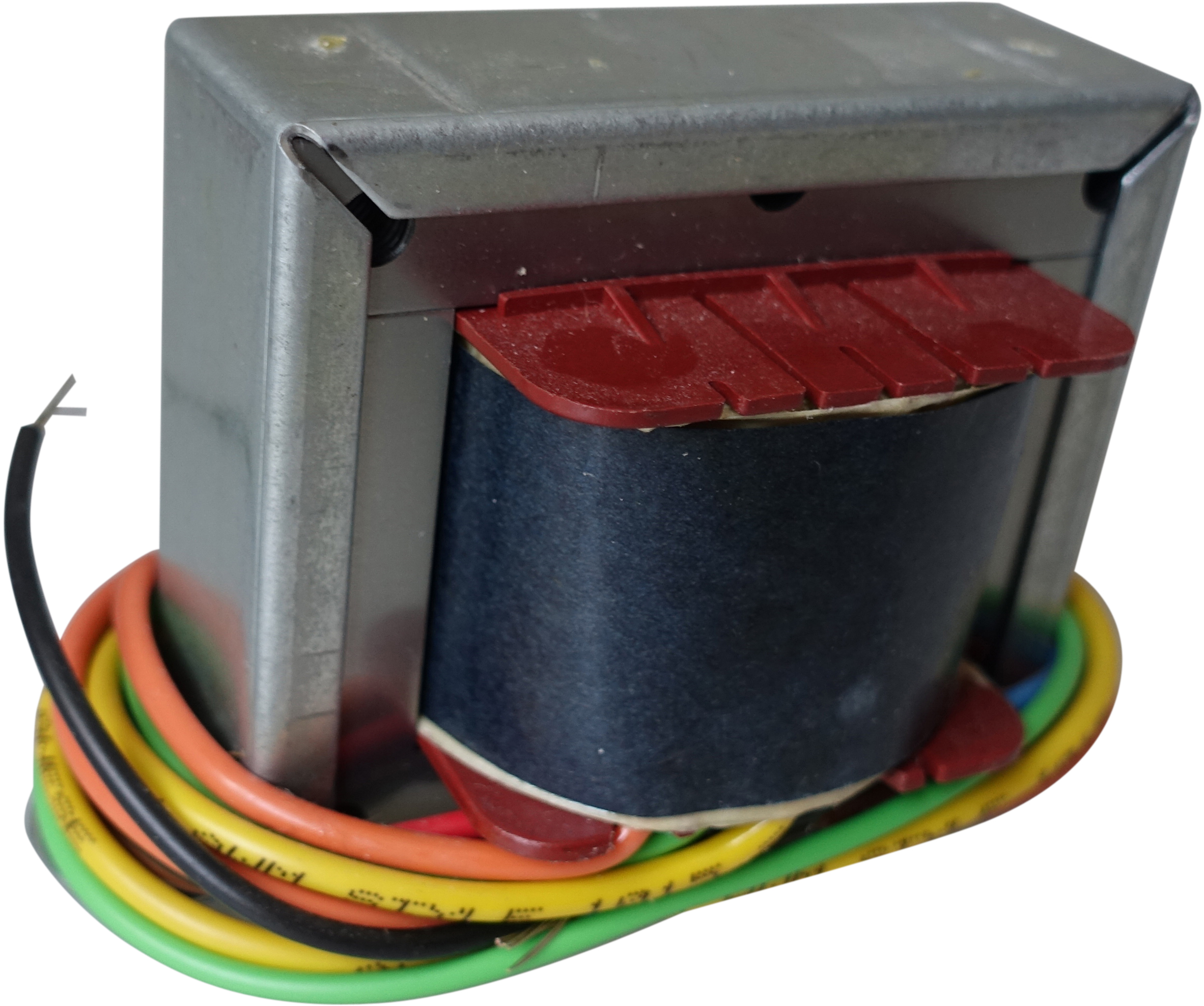

Transformer T-OP-MJTM18WA

Direct replacement Output Transformer, 20W. Impedance: 4, 8, 16 Ohm. Tubes: 2 x EL84. Application: Marshall 2060.

Max. 20 Watt, 2x EL84, Impedance 4, 8, 16 Ohms

perfect replacement for the Marshall 1974X and 2061X, replaces C2116 and D4910
Upgrade for many Amps with 2x EL84 like Bugera V22 etc.

Lamination: 3 inch, Stacking 1 1/16 inch. Mounting on 3 3/4 inch
Impedance: approx. 9.2 k

Primary:
A1 Blue
B+ Red
A2 Brown

Secondary:
16 Ohms Orange
8 Ohms Green
4 Ohms Yellow
0 Ohms Black
