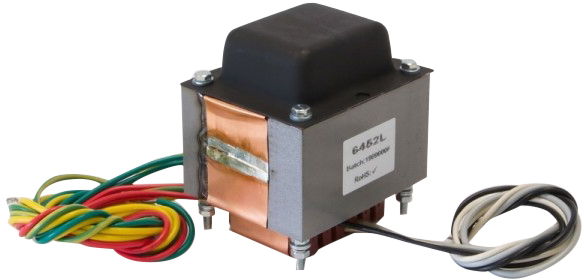

Transformer T-PWR-6452L

Transformer T-PWR-6452L

(0 reviews)

Direct replacement Power Transformer. Application: Fender Tweed Deluxe Amp (5E3 etc.). New Version: 2 inch stack and C.T. on filament for low noise. Supports 6L6GC and GZ34/5AR4 tubes too!

Lamination: 3 3/8 inch
Mounting on 70 x 56mm, lay-down.

height above chassis: 75mm
W x D x H: 87mm x 70mm x 90mm
weight: aprox. 2.2kg

Primary: #70005
0 V Black
230 V White
240 V Grey

Secondary:
325 V@ 140mA Red
0 V Green/Yellow
325 V Red

5 V@2A Yellow
0 V Yellow

3.15V@3A Green
0V Green/Yellow
3.15V Green

With a 5Y3 and idling current You get about 350V DC of B+, with a GZ34 it is about 390V.

SKU SKU 30424
Weight 2.200,00 g
Manufacturer Tube Amp Doctor Musikhandels GmbH, Weinbrennerstr. 1, 67551 Worms, https://www.tubeampdoctor.com/
Our price: 125,40
including VAT 19% , [plus shipping]
 Delivery time: 4-5 days*
