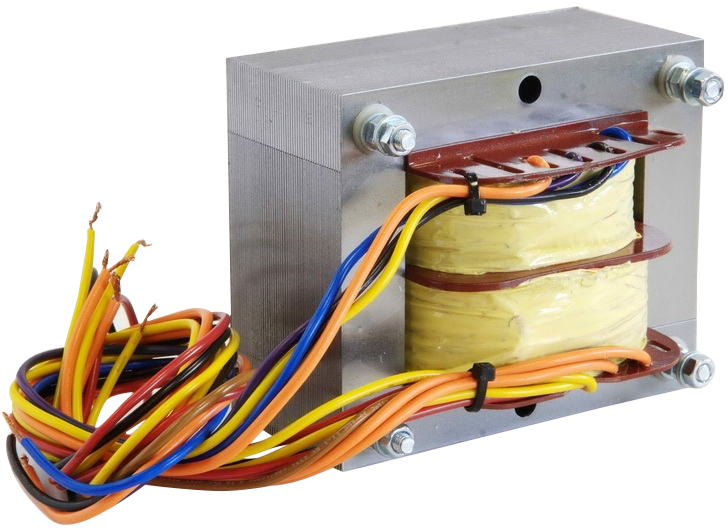

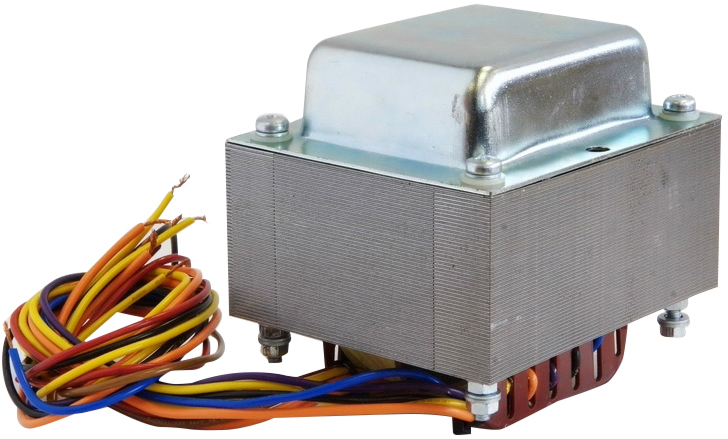

Transformer T-PWR-M50PL

Direct replacement Power Transformer. Application: Marshall 50W Plexi, horizontal version (laying down). JTM 45, 1987, 1987, made in 1966 - 1969. Direct replacement for 1202-118. Does not fit in Marshall JTM45 Reissue, Modell 2245!

lamination size 4 ½ inch
Mounting on 3 ¾ inch x 3 inch

Primary:
0V Blue
120V Black
220V Purple
230V Orange
240V Yellow

Secondary:
345V@200mA Red
0V Black
345V Red

3,15V@5A Orange
0V Brown
3,15V Orange
5V@2A Yellow
0V Yellow
