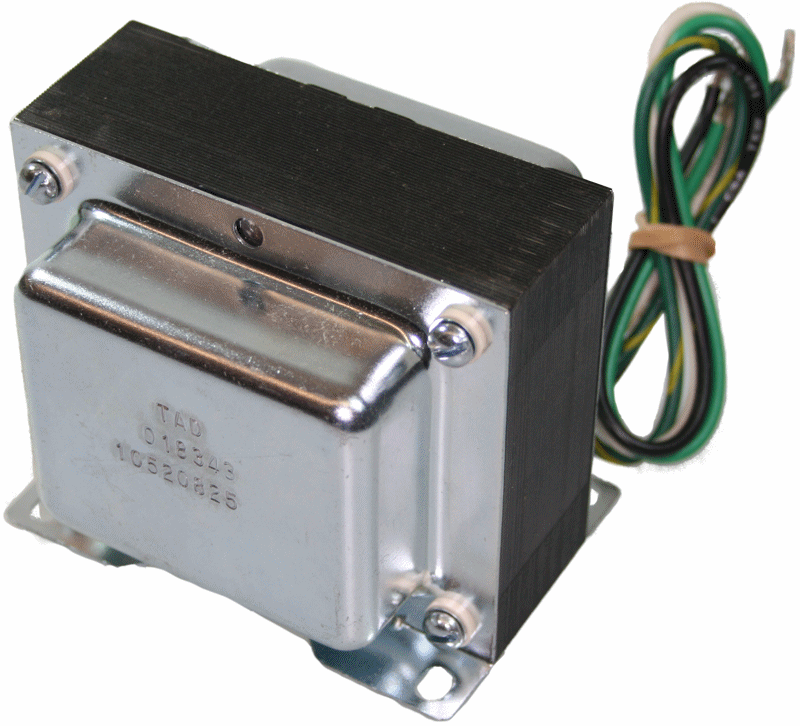

Transformer T-PWR-M50PN

Direct replacement Power Transformer. Application: Marshall JCM900 and JCM2000 50W Models like 2500, 2501, 4500, 4501, DSL50, TSL60, TSL601, TSL602. and also used in the 9100 power amp. Upgrade for the METXMA00067. primary for 115/230V

UPGRADE: Supports KT88 too!
comes with top shroud and full mounting kit

Primary: 0V #14
115V #13

0V #11
115V #10

Primary: #70005
0V #13
117V #12

0V #10
117V #9

Secondary:
340V@0.4A #2
0V #3

21V@250mA Red
0V Black
21V Red

3,15V@5.5A #4
0V #7
3,15V #5
