ABM 3021ca

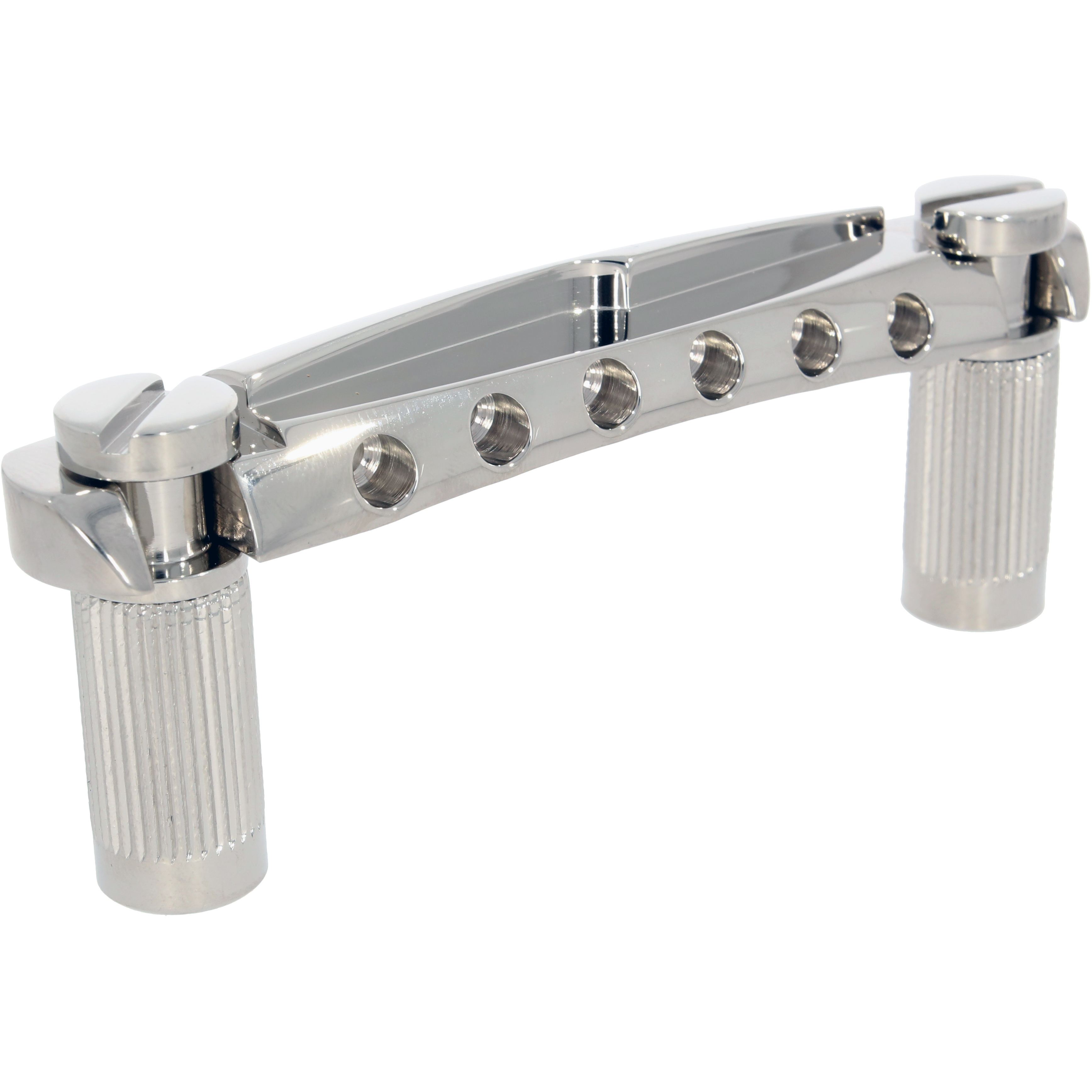

Classic Wraparound Tailpiece with an intonation curve like a LesPaul Junior. Milled from aluminum, chrome. String spacing: 52mm, 82mm bolt distance, 12 inch radius, 5/16 inch bolts/bushings, intonation fine adjustment by two allen screws, so the wraparound can be used for angled mounting. The bridge is not compatible with Gibson models where the bridge is mounted perpendicular to the string course. In this case please select the item ABM 3025.

Notes:

ABM ships their 3021 tailpieces with 5/16 inch bolts, industry standard on the US originals. For Asian guitars, however, the M8 variant may be required (please see product ABM 30208).

Please use ABM studs with an ABM tailpiece! Third party studs may cause problems.

Usually do not try to replace the sleeves from existing guitars. If you do not have a suitable tool, this action can be difficult. In addition, the sleeves are often laquered in, therefore removal could result in lacquer cracking. The ABM bushings have a standard outer diameter of 13mm. This can greatly vary in an existing guitar (between 11 and 13mm). So please first check compatibility. The sound difference is already significant without a socket replacement.
