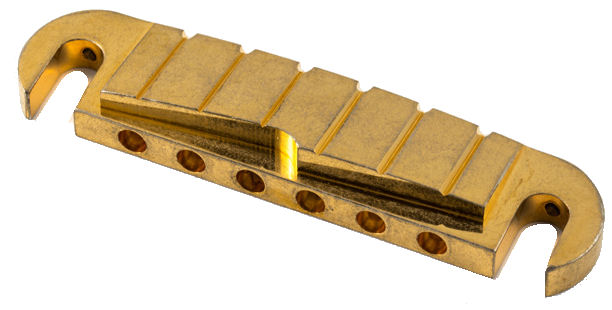

ABM 3022ga aged

The perfect sound tool for your PRS guitar (US specifications). Made of aluminum, gold aged. Features ABM's 'Advanced String Guide', which goes from a round groove in a V-notch in order to prevent the sitar effect by a perfect string contact. String spacing: 52 mm, 81 mm pin spacing, 10 inch radius, 5/16 inch large head bolts, intonation fine setting by two allen screws possible so that the wraparound can be used for an angled or straight mounting.

Notes:

ABM ships their 3022 wraparound bridges with 5/16 inch bolts/sleeves, since this is what is found on US made PRS guitars. For Asian guitars, however, the M8 variant may be required (please see product ABM 30208).

Please use ABM studs with an ABM tailpiece! Third party studs may cause problems.

Usually do not try to replace the sleeves from existing guitars. If you do not have a suitable tool, this action can be difficult. In addition, the sleeves are often laquered in, therefore removal could result in lacquer cracking. The ABM bushings have a standard outer diameter of 13mm. This can greatly vary in an existing guitar (between 11 and 13mm). So please first check compatibility. The sound difference is already significant without a socket replacement.
