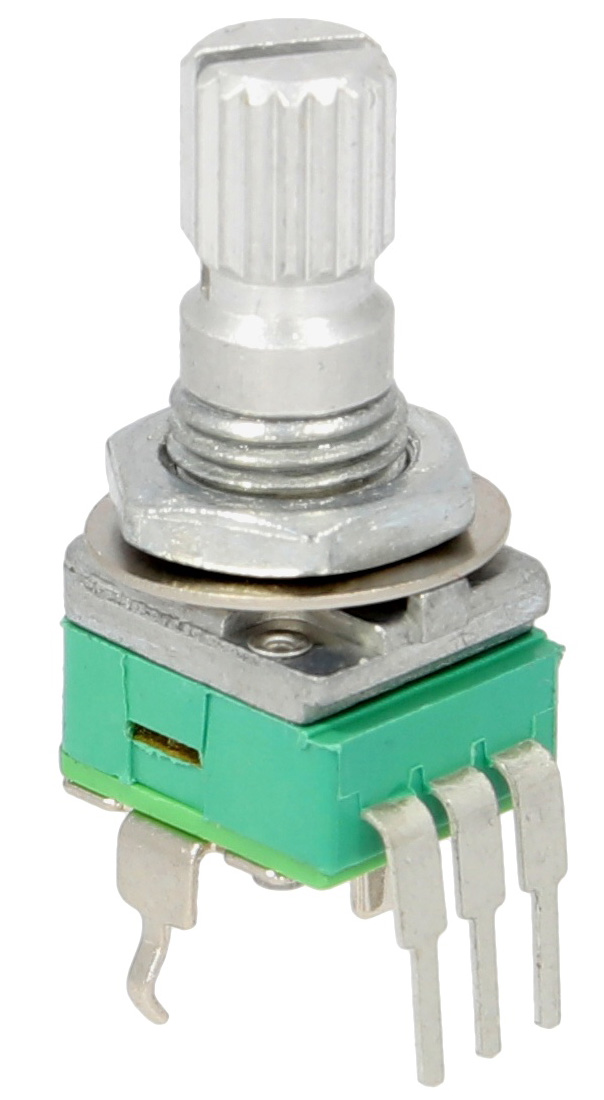

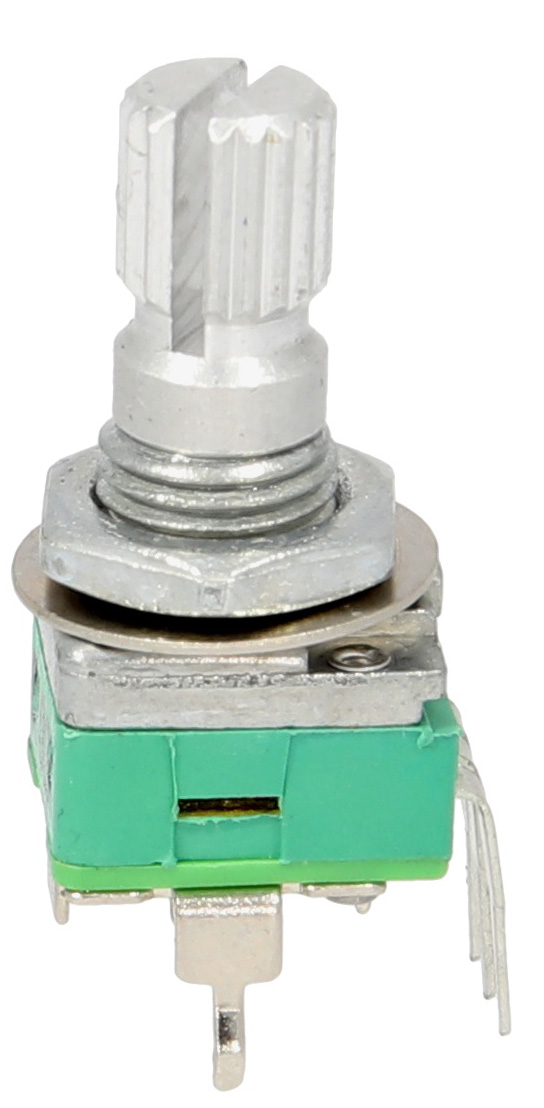

Alpha 9mm split shaft 50k lin

Alpha 9mm split shaft 50k lin

(0 reviews)

  • Type: Mono
  • Metal axis diameter: 6,0mm
  • Body diameter: 9mm
  • Mounting hole diameter: 7,5mm
  • With right angled PC mount vertical terminals
  • Rated wattage: 0,05W
  • Rated voltage: 50VAC
  • Rotation angle: 300 degrees +/-10%
  • Tolerance: +/-20%
  • Insulation resistance: 100M Ohm at 250V DC
  • Breakdown voltage: 300VAC for 1 minute
  • Body size (LxWxH): 9x9x7,6mm
  • Thread: M7
  • Length (thread): 5mm
  • Length (axis and thread): 15mm
  • Knurled split shaft fits all 6,0mm and 6,3mm knobs.

    • SKU SKU 61886
    Weight 8,00 g
    Manufacturer TAIWAN ALPHA ELECTRONIC CO.,LTD., 9F., No. 1221, Zhongzheng Rd., Taoyuan Dist., Taoyuan City 330010 , Taiwan (R.O.C.), sales@taiwanalpha.com
    Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €2,71
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
