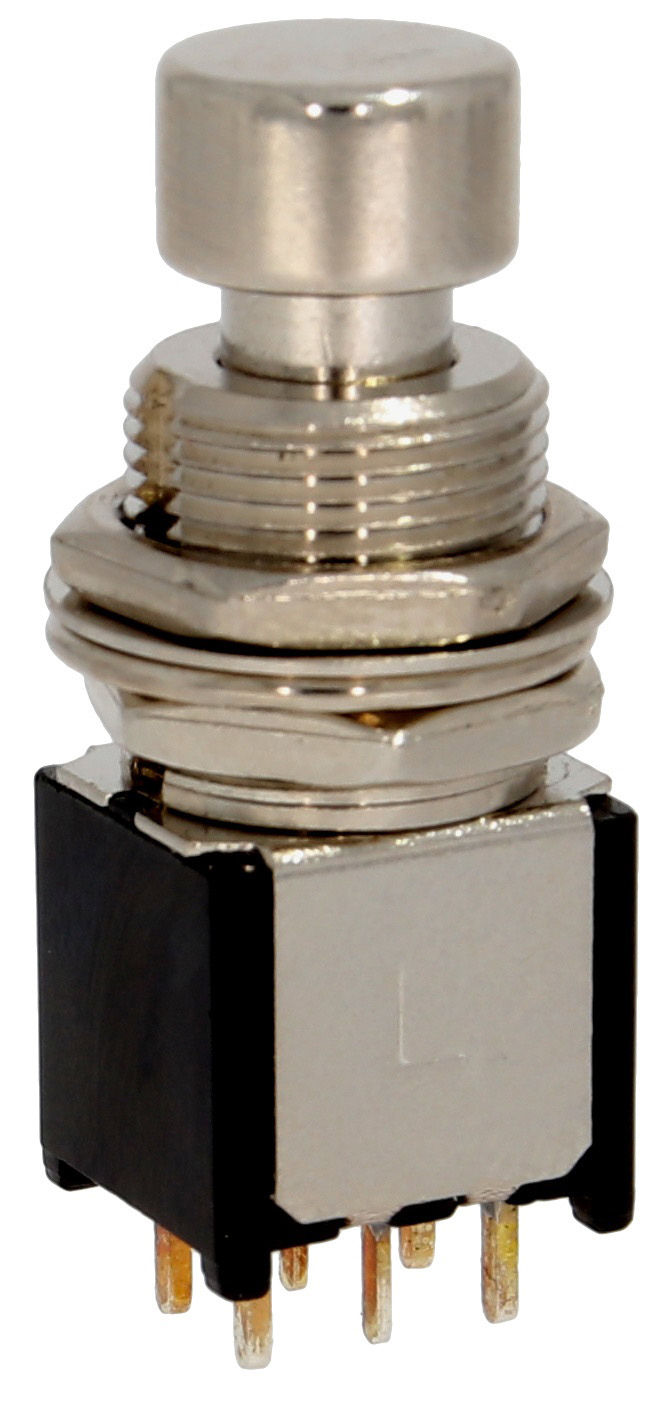

Alpha DPDT momentary, pins, Low Force

Alpha DPDT momentary, pins, Low Force

(0 reviews)

Alpha DPDT
high quality miniature DPDT footswitch.

hole diameter: 12mm
body dimensions: 14x12x16mm
total height: 32mm

6A/125VAC, 3A/250VAX, 4A/30VDC
Contact resistance: 50mOhm, silver contacts
Insularion resistance: 500VDC - 100MOhm min.
Dielectric strength: 1000VAC for one minute
Operating life: 30000 cycles.


SKU SKU 60528
Weight 19,00 g
360 Image 360 degrees image
Manufacturer TAIWAN ALPHA ELECTRONIC CO.,LTD., 9F., No. 1221, Zhongzheng Rd., Taoyuan Dist., Taoyuan City 330010 , Taiwan (R.O.C.), sales@taiwanalpha.com
Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
Our price: €4,64
including VAT 19% , [plus shipping]
 Delivery time: 4-5 days*
