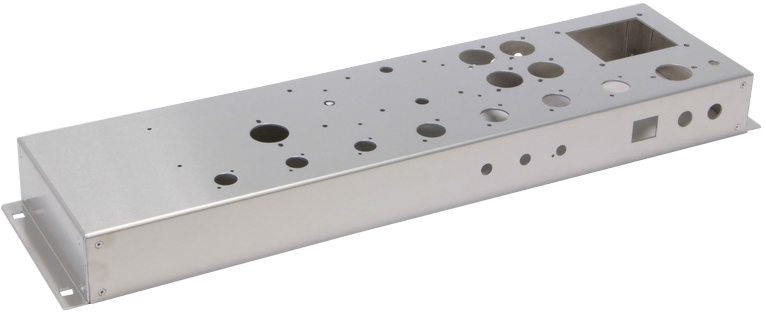

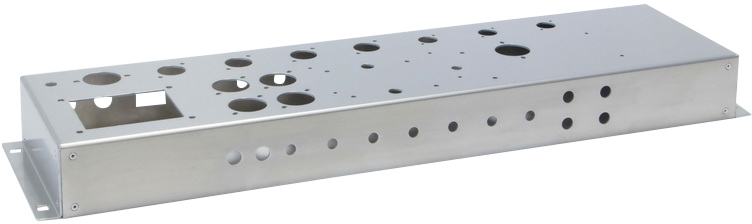

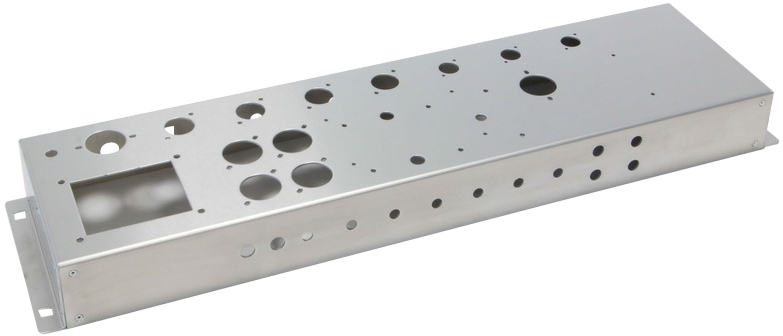

Amp Chassis Plexi 100W

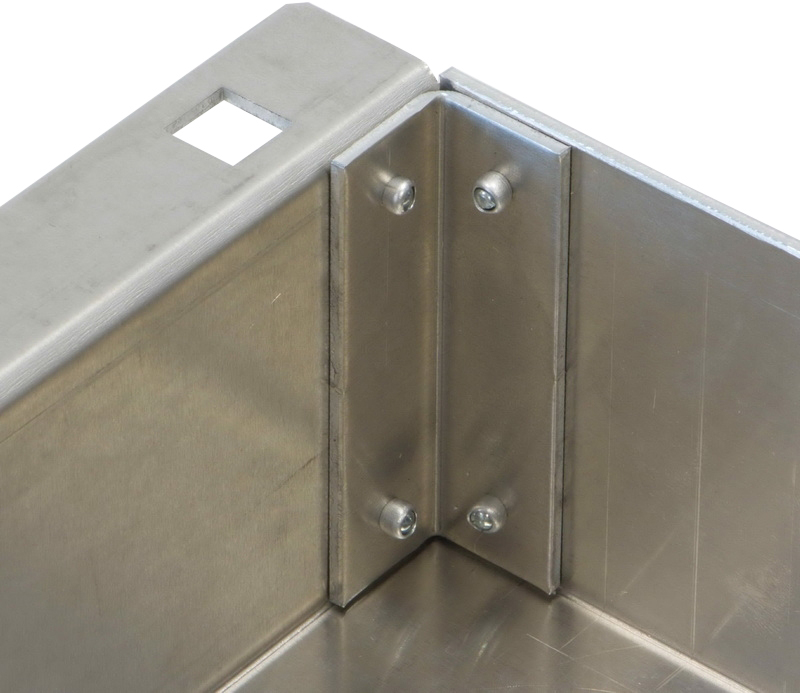

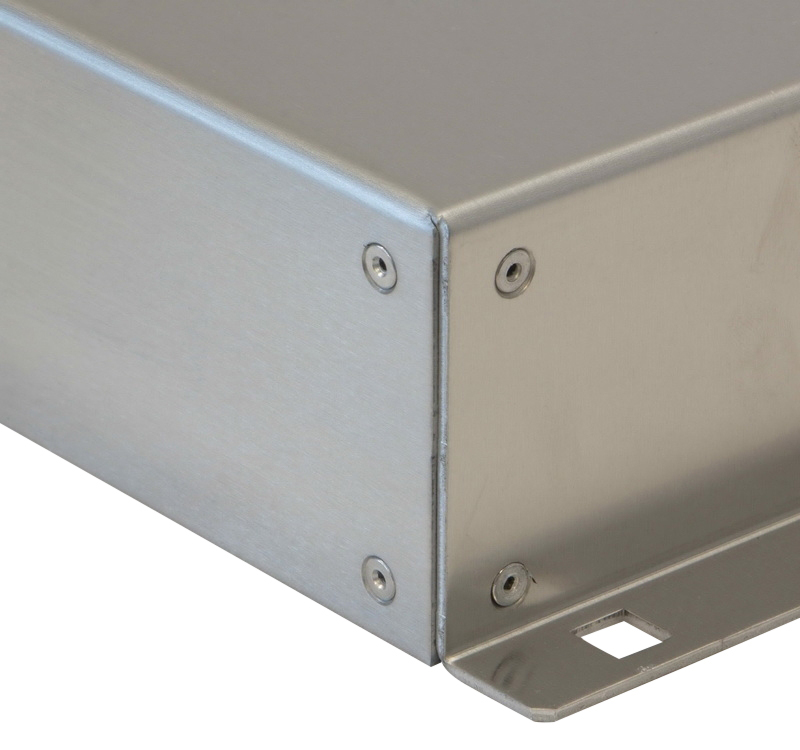

Amp Chassis for 100 Watt Plexi. Made of hardened aluminium, 2mm (5/65 inch). Welded corners.

Dimensions (HxWxD): 66x642x172mm. Width incl. mounting flange: 684mm

drilled/cut-outs for:
4x Octalsockets, d=25mm (for EL34), e.g. S8C-1
3x Novalsockets, d=19mm (for ECC83), e.g. S8CS
6x Electrolytic capacitors for d=35mm, e.g. V5050500R
1x lay-down mains transformer
several holes for upright standing output transformer
Choke
Cable grommet
Capacitor clamps, etc.

Frontside:
2x Mains switch
4x Input jacks
6x Potentiometers
1x Indicator/Pilot Light

Rearside:
2x Fuseholders
1x IEC-AC-Jack
1x Impedance Selector Switch
2x Speakerjacks
