Board BB-PB-1

Board BB-PB-1

(0 reviews)

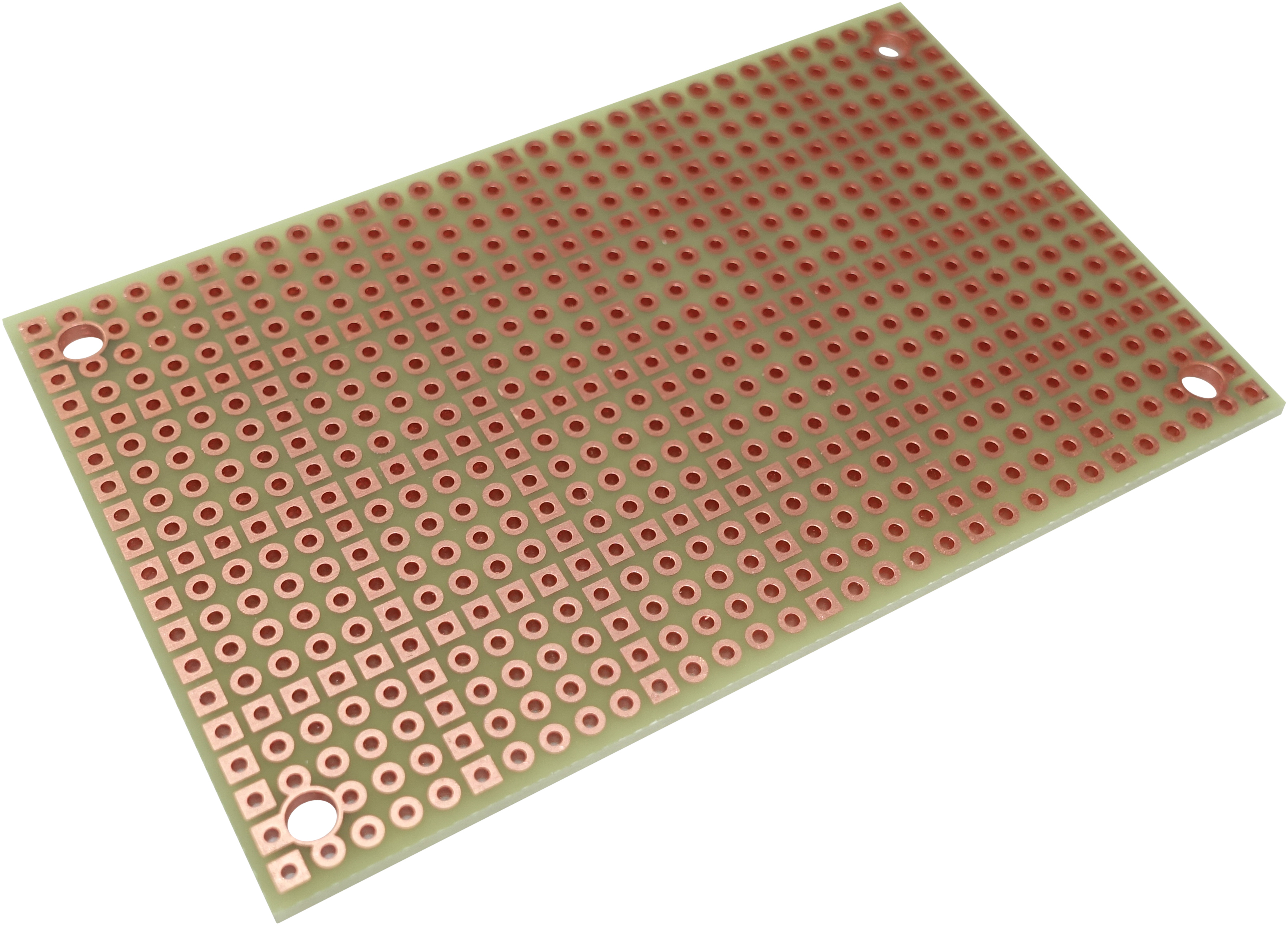

Prototyping circuit board that has a general purpose pad-per-hole pattern making it great for general purpose analog and digital use. It is a double-sided board with plated holes, which allows components to be easily soldered to either side of the board. A square pad is provided every 5th hole, which makes it easy to align components on the top and bottom of the board. An anti-tarnish coating protects the copper for a long shelf-life and provides easy soldering.

Specifications:

  • Pad-per-hole prototyping board with plated-thru holes. A square pad every 5th hole makes it easy to align components on top and bottom
  • Double-sided high-quality FR4 glass-epoxy circuit board with plated holes. Components can be soldered to either side.
  • 1oz/ft2 copper with an anti-tarnish coating for easy soldering.
  • 31 x 19 holes, 0.037" holes are drilled on 0.1" (2.54mm) centers. Four 0.125

  • SKU SKU 51106
    Weight 10,00 g
    Our price: 4,56
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items 4,36
    10-24 Items 4,13
    25+ Items 3,90

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
