Bourns AP-KN 100k lin

Bourns AP-KN 100k lin

(0 reviews)

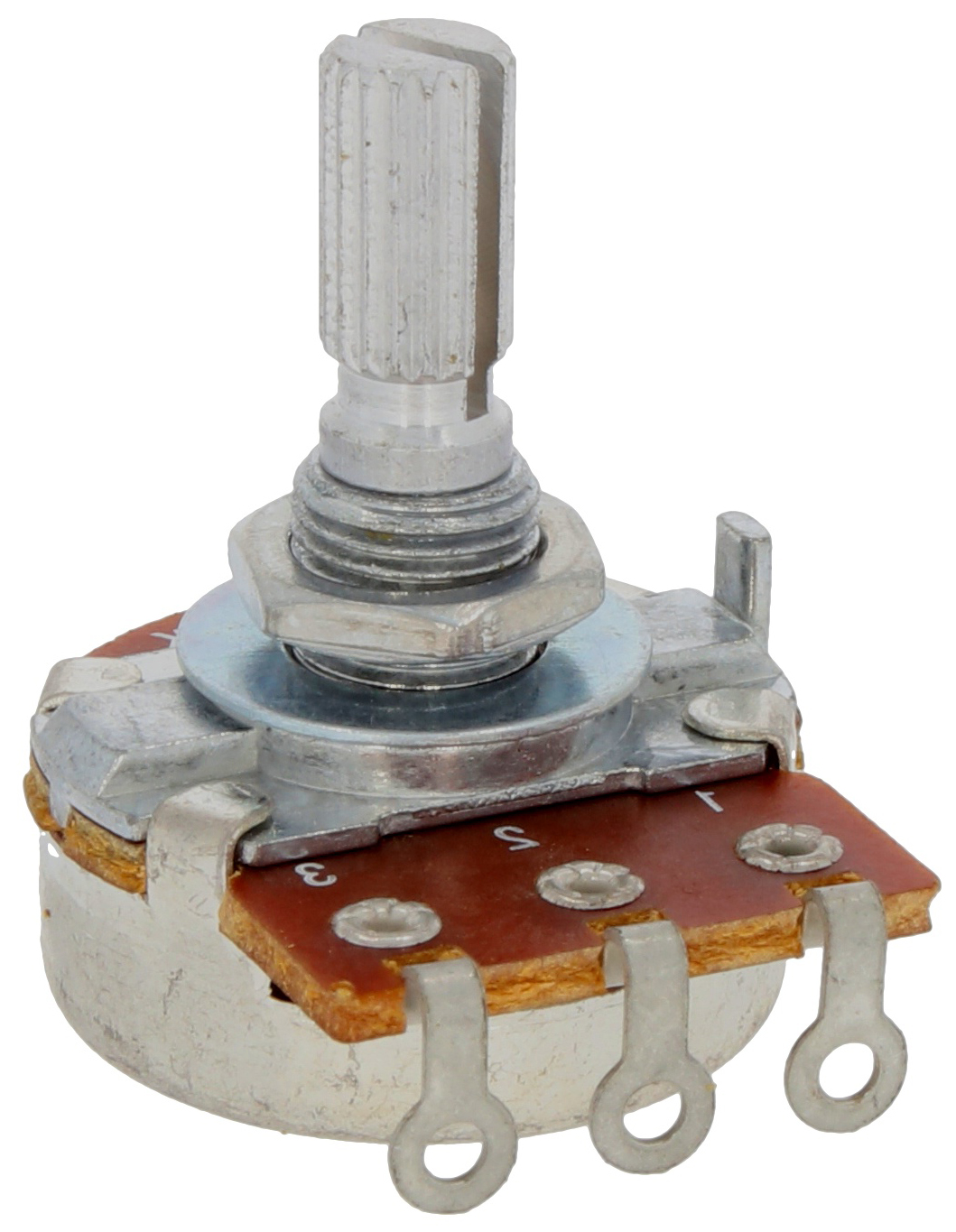

Bourns 24mm mono Audio Potentiometer. Knurled split shaft. These high quality potentiometers are suitable for use in both professional and consumer applications. The most popular applications are electric guitars, sound processing equipment, and sound system amplifiers.

Standard Resistance Tolerance: ±20%
  • Residual Resistance: R<500K? - 10k max., R>500K? - 0.1% max.
  • Operating Temperature: -10°C to °C
  • Power Rating: Linear (lin): 0.5W, Audio (log): 0.25W
  • Maximum Operating Voltage: Linear (lin): 500V, Audio (log): 250V
  • Rotational Noise: 150mV max.
  • Mechanical Angle: 300°±5°
  • Rotational Torque: 20 to 200g-cm
  • Stop Strength: 8kg-cm. min
  • Rotational Life: Standard: 15,000 cycles min.
  • Soldering Condition: Manual: 300°C within 3 sec. Wave: 260°C within 3 sec.
  • Hardware: one flat washer and mounting nut supplied per potentiometer with bushing

    Features:
  • High rotational life
  • Metal shaft styles
  • Carbon element
  • Wide range of resistance tapers
  • RoHS Compliant

    Applications:
  • Electric guitars
  • Sound processing equipment
  • Guitar and sound system amplifiers

    • SKU SKU 76399
    Weight 12,00 g
    360 Image 360 degrees image
    Manufacturer Bourns Electronics GmbH, Einsteinring 30, 85609 Aschheim, Deutschland, https://www.bourns.com/de/support/global-locations
    Our price: €3,75
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
