Charge Pump 3PDT Board 18V

Charge Pump 3PDT Board 18V

(0 reviews)

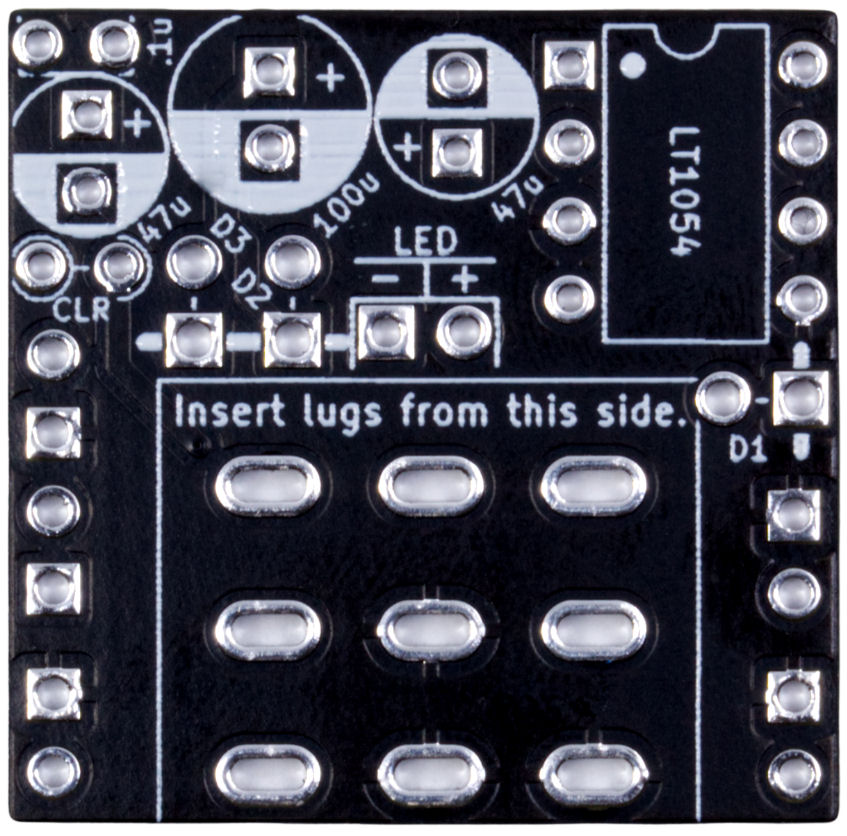

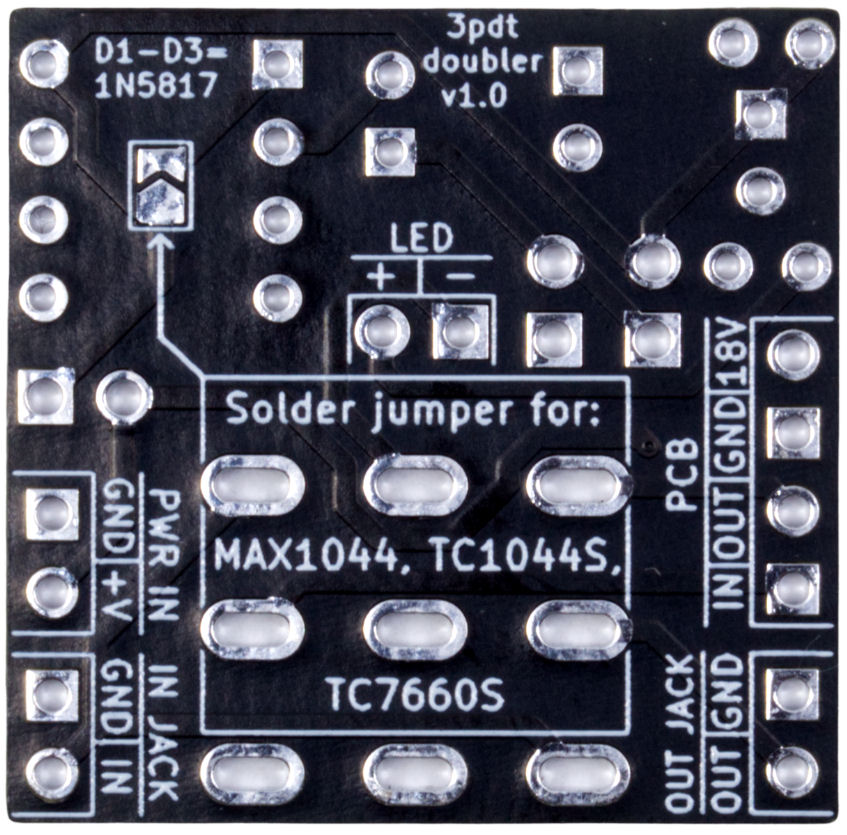

3PDT switch mounted charge pump PCB for +18V effects. This small PCB simplifies the wiring of 3PDT foot switches in guitar pedals while also offering +18V when used with a standard +9V power supply. This is a great option for +18V effects such as vintage delays and modern boosts and distortions. The circuit of this PCB also features a protection diode and an LED indicator for when the effect is engaged.

This board is compatible with the MAX1044, TC1044S, TC7660S, and LT1054 charge pump ICs.

SKU SKU 77132
