Charge Pump 3PDT Board +/- 9V

Charge Pump 3PDT Board +/- 9V

(0 reviews)

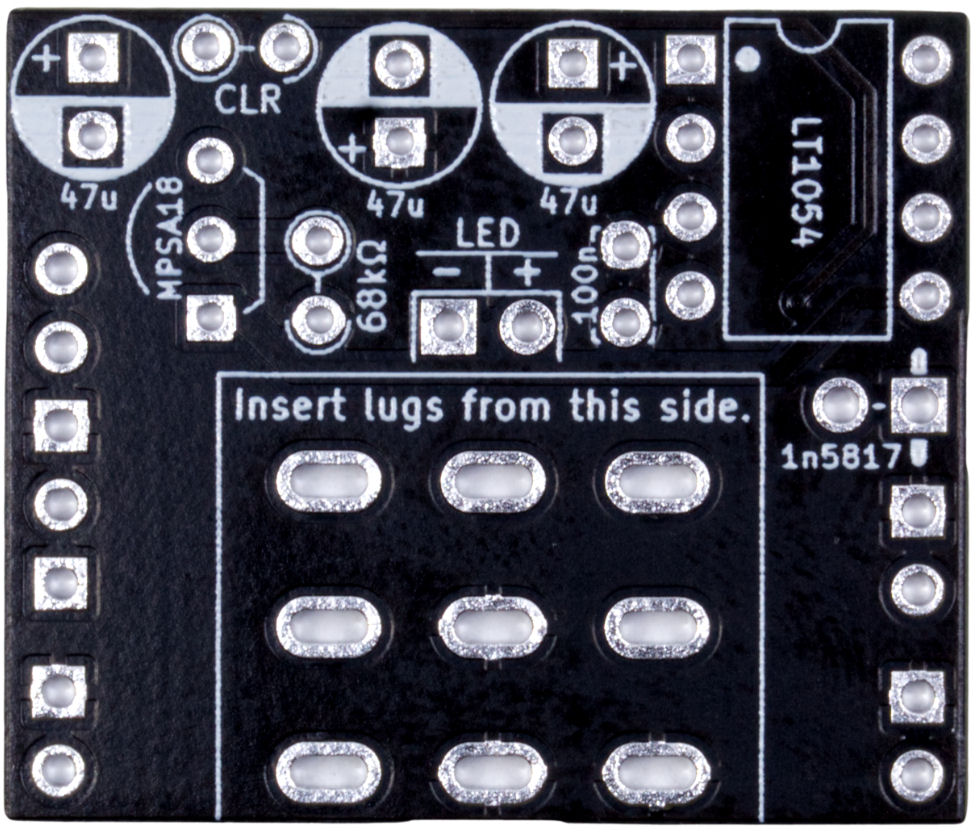

3PDT switch mounted charge pump PCB for effects requiring both +9V and -9V. This small PCB simplifies the wiring of 3PDT foot switches in guitar pedals while also offering ±9V when used with a standard +9V power supply. This is a great option for bipolar power supply effects such as vintage delay and modulation pedals as well as synth effects. The circuit of this PCB also features a protection diode and an LED indicator for when the effect is engaged.

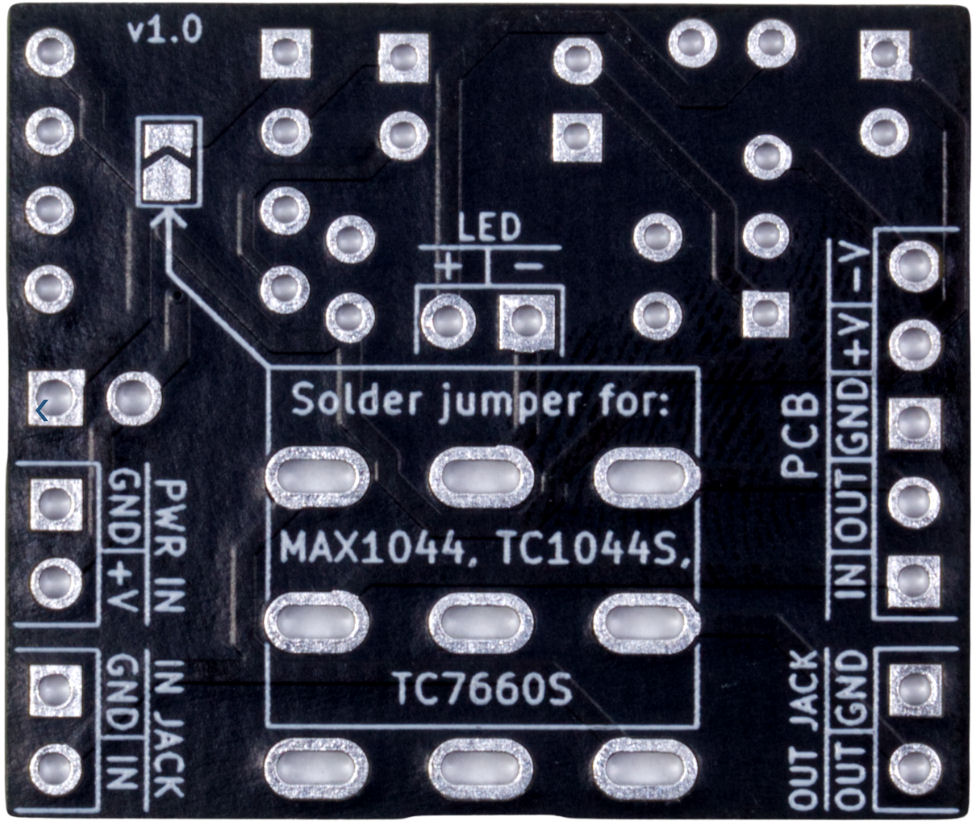

This board is compatible with the MAX1044, TC1044S, TC7660S, and LT1054 charge pump ICs.

SKU SKU 77131
Weight 6,00 g
Our price: 2,98
including VAT 19% , [plus shipping]
 Delivery time: 4 weeks*
