Coolaudio V3208SD

The V3208SD is a 2048-stage low voltage operation (VDD = 5V) BBD that provides a signal delay of up to 102.4ms at clock frequency 10KHz and is suitable for use as reverberation effect of audio equipments such as portable stereo and radio cassette recorders which need low voltage and long delay time since S/N is 71dB in spite of many stages.

Features:

Variable delay of audio signals: 10.24ms <~> 102.4ms.
Wide power supply voltage: 4<~> 10V.
No insertion noise: Li = 0dB typ.
Wide dynamic range: S/N = 71dB.
N Channel silicon gate process.

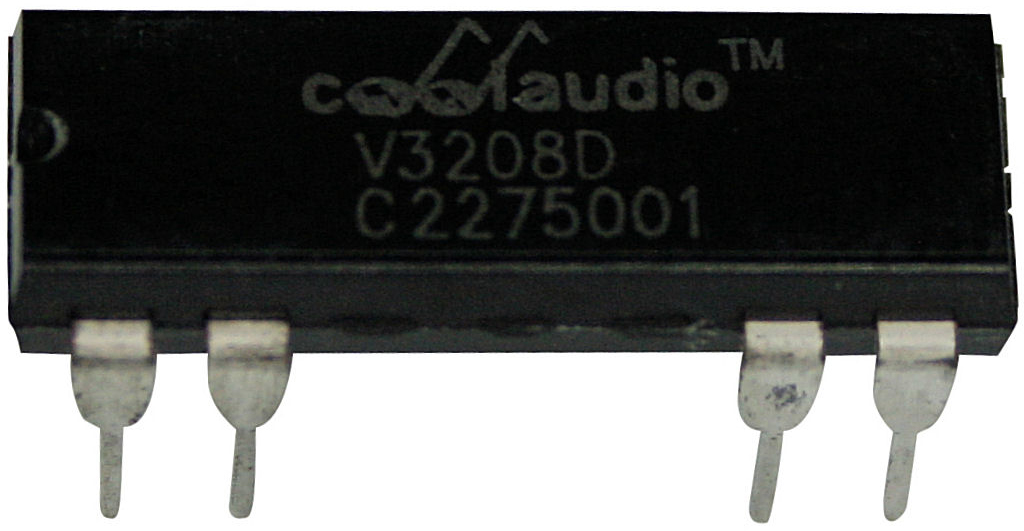

Special 8-Lead Dual-In-Line plastic Package(-SDIP8).
