Effects loop kit

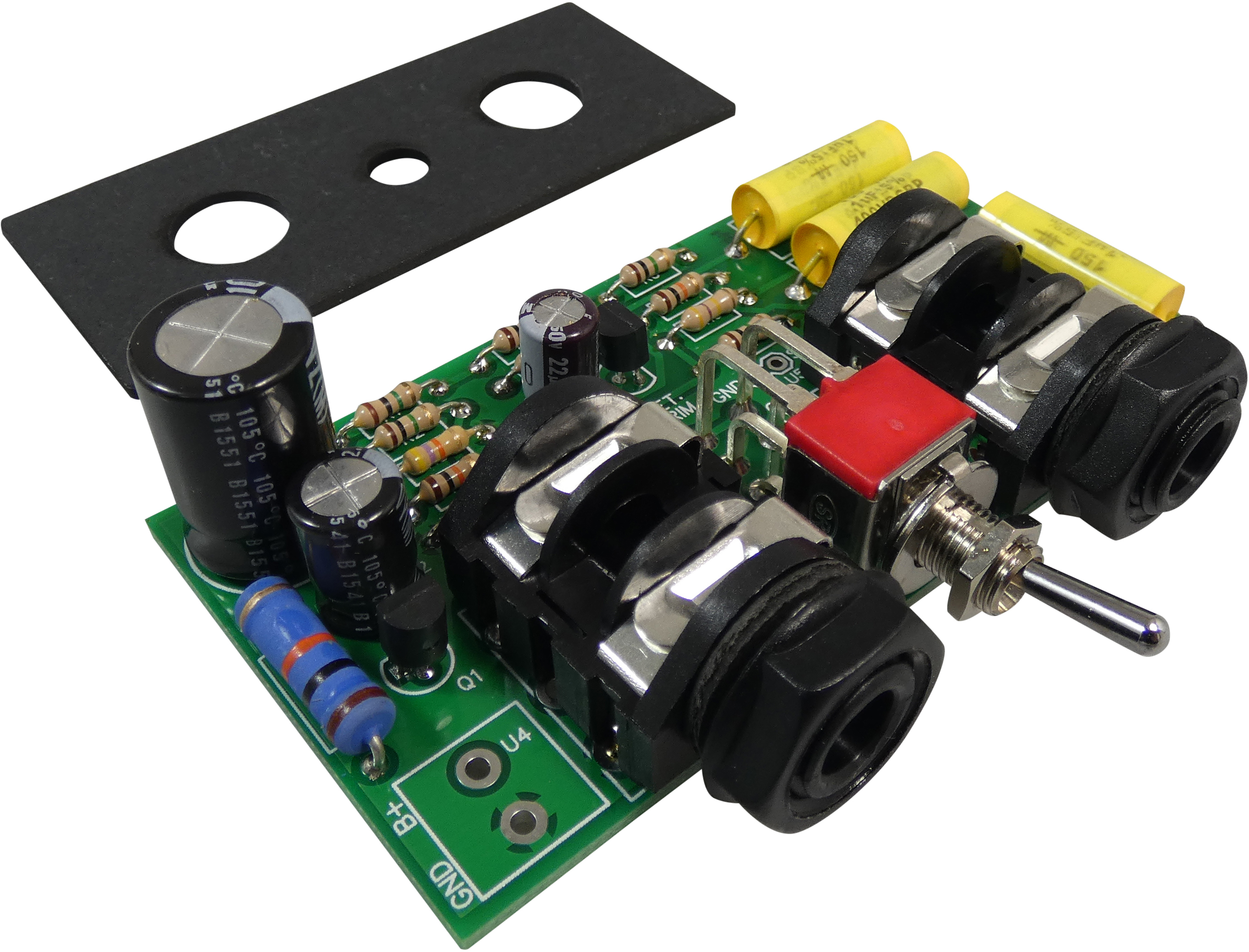

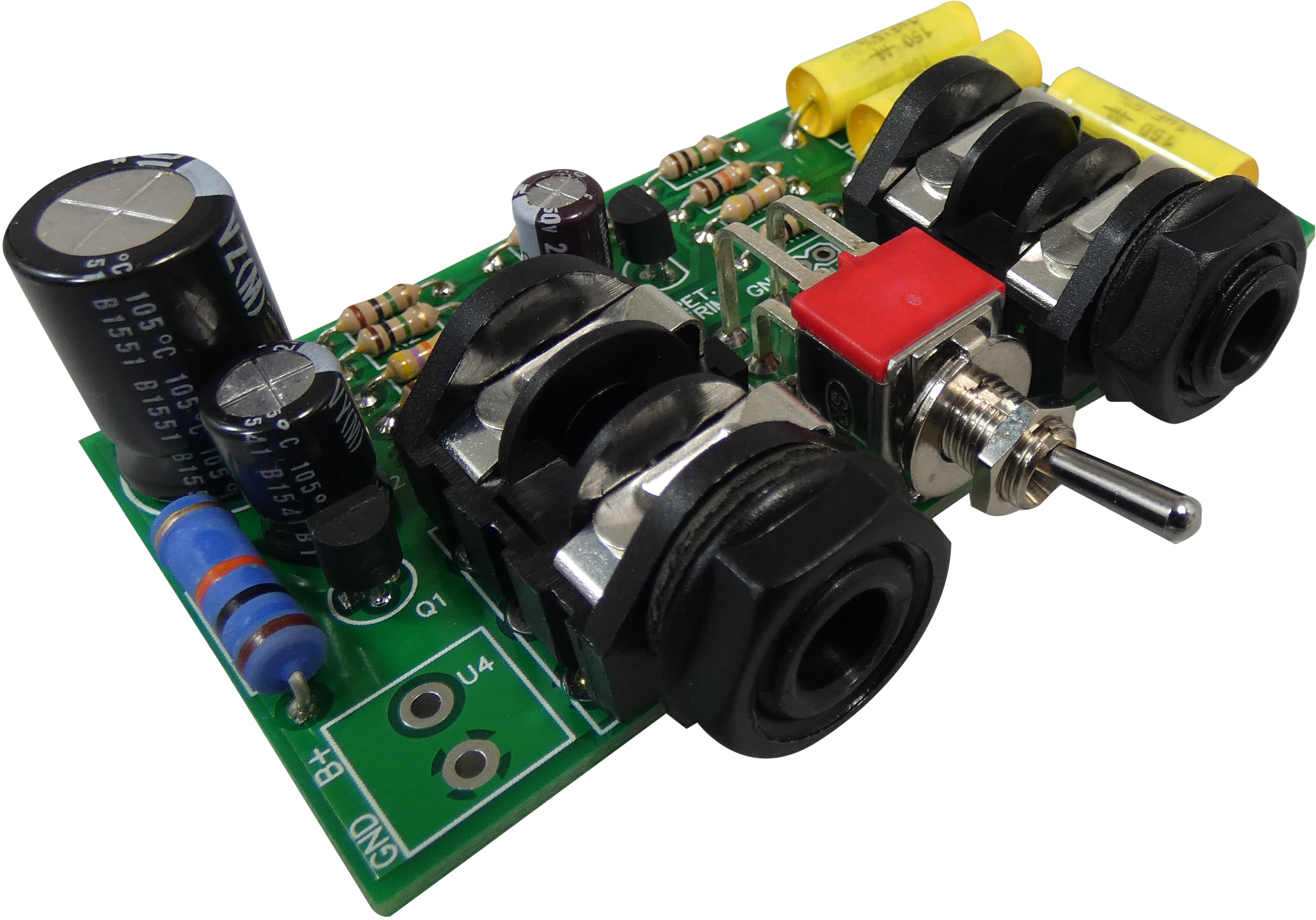

Effects Loop Kit, active. Offers a low noise non clipping high voltage discrete buffer and return gain stage optimized for insertion between your preamp and driver stages. Installation requires 4 wires, power ground input and output. The stock setup offers a send with 10dB of cut and a return stage with 16dB of boost. The signal path can be reconfigured with panel mount pots, or trim pots (not included) or by changing component values on the board for a modified fixed installation.

Installation requires 4 wires, power ground input and output.
Required supply voltage: between 250V-400V dc

The stock setup offers a send with 10dB of cut and a return stage with 16dB of boost. The signal path can be reconfigured with panel mount pots, or trim pots (not included) or by changing component values on the board for a modified fixed installation.

The stock board has been well tested in British 45 and British 800 installations and is quiet and highly functional.
Wire is not included since you will probably want to use cloth covered wire in Fender installations and PVC coated wire in British amps. Our installations did not require the use of shielded wire.
