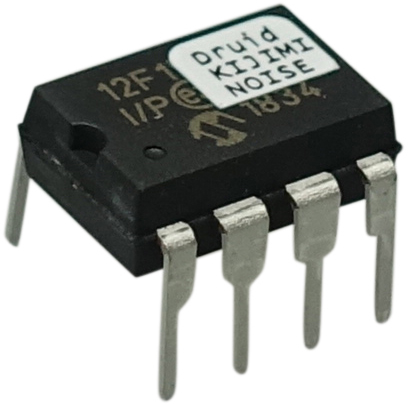

Electric Druid Kijimi Noise

The KIJIMI Noise generator provides two digital control inputs that can turn one of three digital noise outputs on. This enables digital control of noise level or routing with no extra parts, which can reduce the complexity of voice circuits.

For example, feeding the outputs to differently-weighted resistors in an op-amp mixer circuit allows the two digital inputs to select from one of three arbitrary noise levels, or to select 'noise off'.

Feeding each output to a different part of the voice circuit would allow the two digital inputs to select the noise routing. For example, OUT1 could go to the VCO pitch CV mixer, OUT2 to the VCF CV mixer, and OUT3 to the audio mixer.
