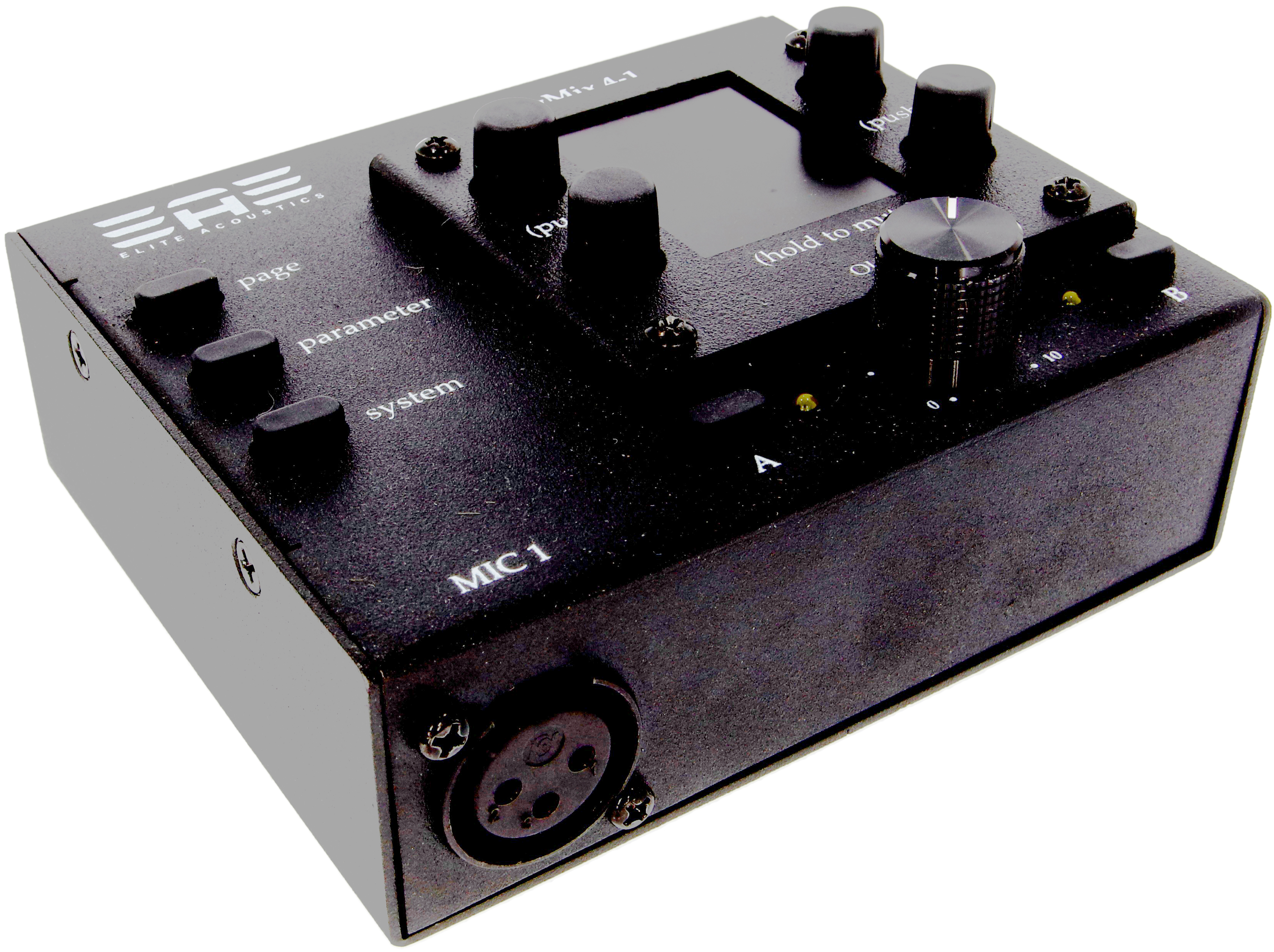

Elite Acoustics GigMix 4-1

GigMix 4-1 mini Digital mixer, porting the engine from the StompMix 4, the GigMix 4-1 is built with a powerful 32-bit 100Mhz DSP engine and a compact lightweight pocket size package. The GigMix 4-1 mini digital mixer offers a full featured, highly intuitive four channels Digital Mixer with a Color Display.
4 effects level control for Reverb and Shimmer. Assignable Delay effects. The DSP engine provides a compressor, limiter, Mid sweepable EQ, Highpass Filter, Notch Filter, Phase reverse to each of the 4 inputs. Analog inputs consisted of 1 Class A solid-state Mic pre-amps and three 1/4 inch TS line/Instrument inputs. Two sets of stereo Mix outputs are selectable between a 1/8 inch TRS jack and 2 1/4 inch TRS jacks with output level control knob . 2 assignable switches, 1/4 inch TRS Balanced outputs. 10 Memory for easy recall and set up. Mic Stand mounting accessory is also available. The size/functionalities of the Gigmix 4-1 mini digital mixer makes it the great pocket live gig mixer to your guitar/vocal setup.

GIGMIX 4-1 FEATURES

4-Channel Mini Digital Mixer

10 user scene memories.

Color display

Input Level Monitoring

1 Class-A Mic inputs with TRIM (CHAN 1)

3 LINE/INSRT inputs with Level Control(CHAN 2, 3 and 4)

Independent Reverb, Shimmer effect on each channel

2 notch filter available on each channel

High Pass Filter and Phase Reverse on each channel

Noise Gate and Compressor on each channel

3 Band EQ with Sweepable MID on each channel

Max 1 second Delay with Tap Tempo (assign to one Channel at a time)

Assignable A/B switch functions (MUTE channels, EFX by-pass, Tap Tempo, Scene change etc)

Output 1 (L/R TRS 1/4″ jacks) - Balanced

Output 2 (Stereo TRS 1/8″ jack)

Output 2 can be used for Headphones

Main MIX and AUX MIX

Scenes Change - via A/B switches

Metal chassis

AC/DC power supply included

Support 9VDC to 12VDC power inputs (500mA, 2.1mm *Center Positive*)

Designed and assembled in USA
