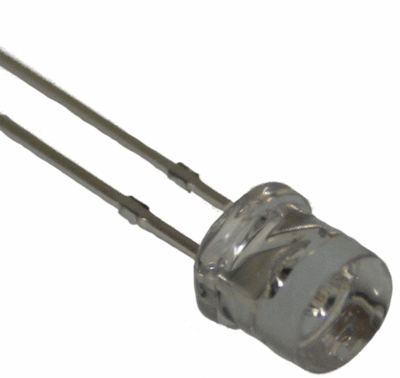

LED 5mm Wide Angle Yellow

LED 5mm Wide Angle Yellow

(0 reviews)

Specifications:

  • Peak Wave Length (nm) : 585-595
  • Forward Voltage (V) : 3.2 ~ 3.6
  • Reverse Current (uA) : <= 30
  • Luminous Intensity Typ Iv (mcd) : 1250(Typical)~ 1560(Max)
  • Life Rating : 100,000 Hours
  • Viewing Angle : 85 ~ 100 Degrees
  • Absolute Maximum Ratings ( Ta = 25°C )
  • Max Power Dissipation : 80 mw
  • Max Continuous Forward Current : 30 mA
  • Max Peak Forward Current : 75 mA
  • Reverse Voltage : 5 ~ 6 V
  • Lead Soldering Temperature : 240°C ( < 5 Sec )
  • Operating Temperature Range : -25°C ~ °C
  • Preservative Temperature Range : -30°C ~ ?°C

    • SKU SKU 54042
    Weight 1,00 g
    360 Image 360 degrees image
    Manufacturer Kingbright Electronic Europe GmbH, Lindenau 7, 47661 Issum, Deutschland, info@kingbright-europe.de
    Our price: €0,49
    including VAT 19% , [plus shipping]
    Quantity Price*
    10-24 Items €0,46
    25-99 Items €0,44
    100+ Items €0,43

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
