Mosrite Fuzzrite style board

Mosrite Fuzzrite style board

(0 reviews)

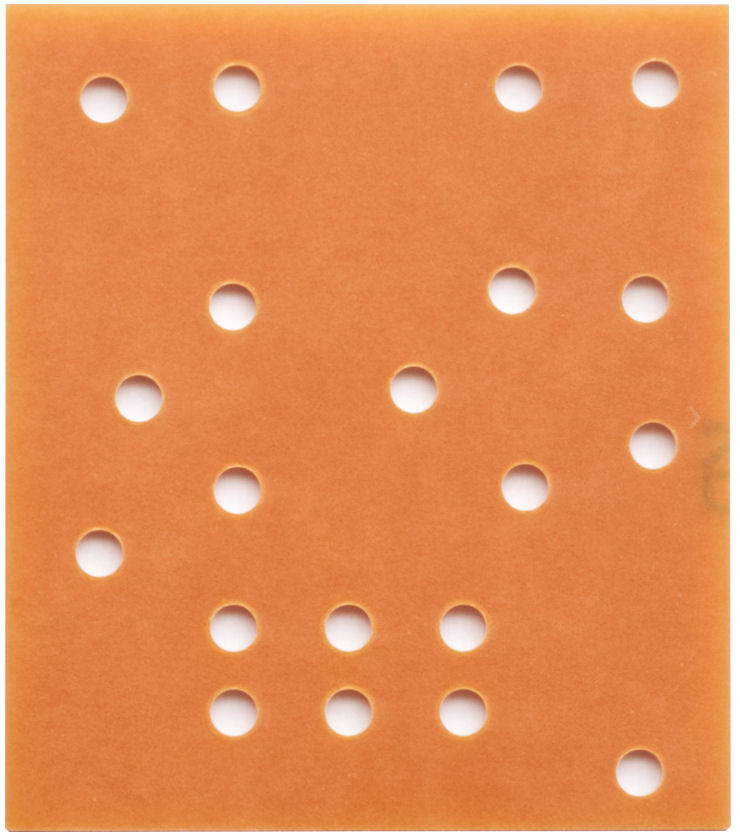

Eyelet-Rite fuzz circuit board made with a phenolic substrate for an even closer match to the vintage production boards. Phenolic boards are found in many vintage electronics before the use of fiberglass became common. This board is a recreation of the circuit board found in the germanium Mosrite Fuzzrite pedals. The board is styled after the point to point version that used eyelets. When drawing the layout, original boards were closely referenced to ensure a proper match and fit.

This board is intended for use with TR-10 eyelets (sold separately as SKU 34598). The build style is very straightforward with point to point connections. It mounts directly to a Carling 316-B-PP DPDT switch (SKU 16226). The original build also used a unique C350K pot and our Omeg 350k REV log is the perfect substitute.

SKU SKU 74800
Weight 5,00 g
Our price: 6,16
including VAT 19% , [plus shipping]
 Delivery time: 4-5 days*
