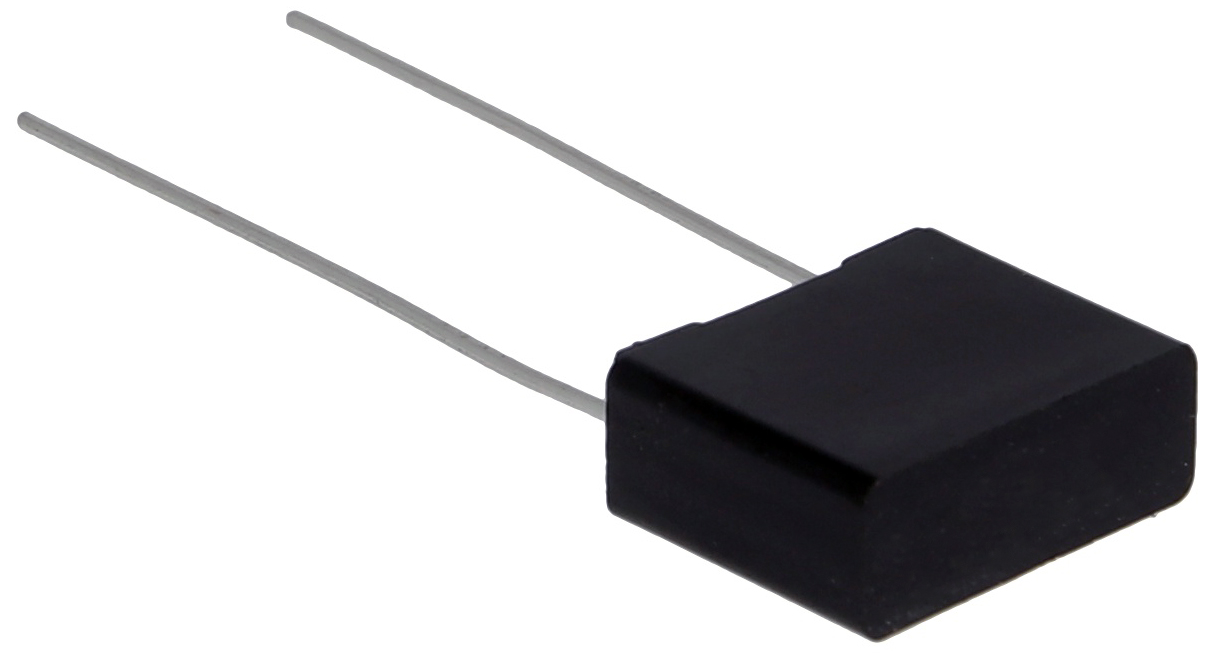

Panasonic ECWFE 0,15uF 630V

Panasonic ECWFE 0,15uF 630V

(0 reviews)

Panasonic polypropylene capacitor. Small size with excellent frequency characteristics. Recommended for audio and filter applications. MKP 0,15uF 630V 5%.

Specifications:

  • Terminal spacing: 15mm.
  • Size (LxWxH): 17,5x11,5x6mm
  • low loss
  • Polypropylen (PPT) foil, metallized
  • flame retardant epoxy coating
  • exellent frequency characteristics
  • Tolerance: +/- 5%
  • Temperature range: -40...+105'C
  • Dissipation factor: 0,1%

    • SKU SKU 48945
    Weight 2,00 g
    360 Image 360 degrees image
    Manufacturer Panasonic Industry Europe GmbH, Caroline-Herschel-Strasse 100, 85521 Ottobrunn, Deutschland, info.pieu@eu.panasonic.com
    Our price: €0,35
    including VAT 19% , [plus shipping]
    Quantity Price*
    10-24 Items €0,33
    25-99 Items €0,32
    100+ Items €0,30

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
