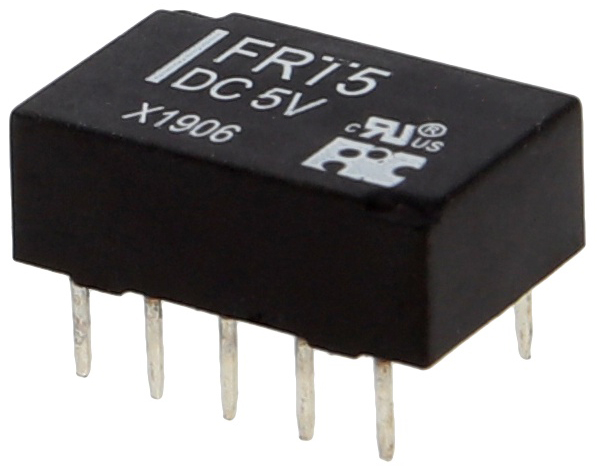

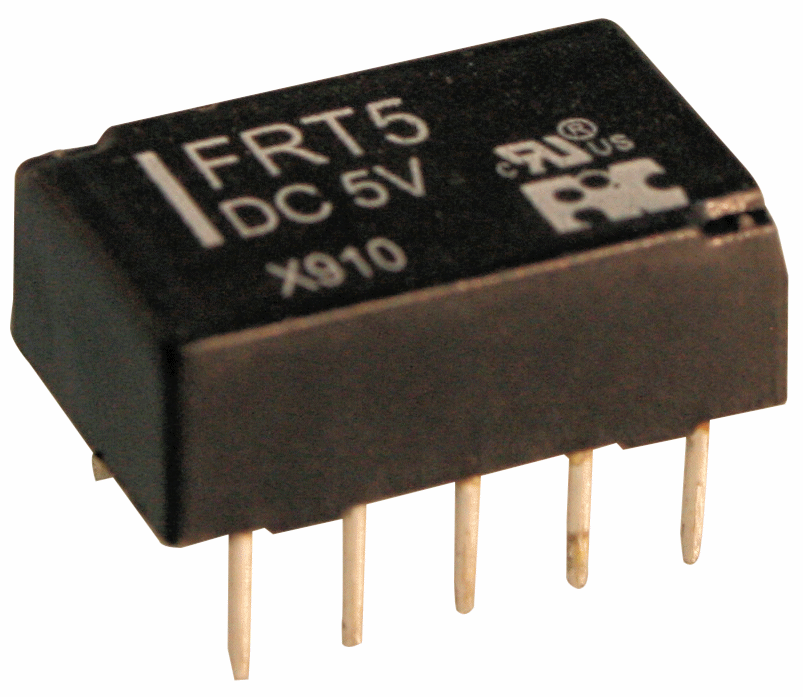

Relay FRT5-DC05V

Relay FRT5-DC05V
Relay DPDT 1A 5V 178R, made by Forward Industries. Small size and ultra slim (only 5mm). Single side stable. Low coil power consumption of 140mW. Wash tight construction RTIII (IP67). PCB mounting or insertable in a DIP/DIL socket.

Specifications:

  • Switching: DPDT
  • Contact Material: AgPd / AgPdAu
  • Contact Rating: 1A / 30V DC 0,5A / 125V AC
  • Rated Current: 1A
  • Max. Switching Current: 1A
  • Max. Switching Voltage: 250V AC / 220V DC
  • Max. Switching Power: 30W / 62,5VA
  • Operate/Release Time; Max.: 2/1ms
  • Testing Voltage (FCC) Coil/Contact: 1500V AC
  • Contact/Contact: 1500V AC
  • Lifetime Electrical (1A/30V DC): 2x10'5 Operations
  • Mechanical: 1x10'8 Operations
  • Operating Temperature: -40...+70'C
  • Weight approx.: 1,5g

    • SKU SKU 49847
    Weight 1,00 g
    360 Image 360 degrees image
    Manufacturer Forward USA, 700 Veterans Highway, Suite 100, Hauppauge, NY 11788, USA, https://forwardindustries.com/contact/
    Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €1,89
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items €1,81
    10-24 Items €1,73
    25+ Items €1,62

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
