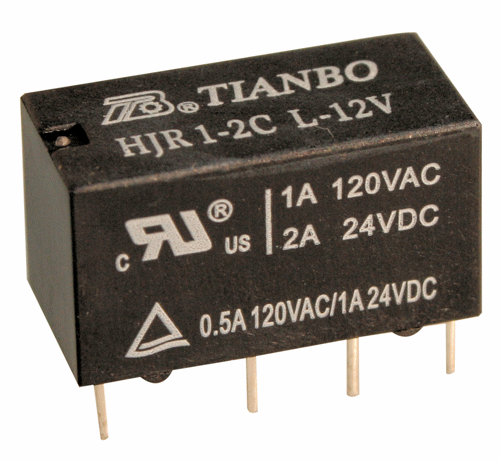

Tianbo HJR1-2C-L-12VDC

Tianbo HJR1-2C-L-12VDC

(0 reviews)

DPDT high sensitivity relay with DIP standard terminals and small height. 12VDC. Sealed IP67. Surge strength 1500V FCC68. Clearance more than 1.2 mm between coil and contacts. Creepage more than 1.9 mm between coil and contacts. May be soldered or inserted into a 16-pole DIP/DIL socket.

Specifications:

  • Contact: DPDT
  • Contact Material: AgNiAu
  • Rated Current: 2A
  • Coil resistance: 720 Ohms
  • Max. Switching Current: 2A
  • Max. Switching Voltage: 240V AC / 60V DC
  • Max. Switching Power: 120VA / 60W
  • Operate/Release Time: 8/4ms
  • Testing Voltage
  • Coil/Contact: 1000V AC
  • Contact/Contact: 500V AC
  • Lifetime Mechanical: 1x107 Operations
  • Electrical: 1x105 Operations
  • Operating Temperature: -30...+85'C
  • Weight Approx.: 5g

    • SKU SKU 49787
    Weight 5,00 g
    360 Image 360 degrees image
    Manufacturer NINGBO TIANBO GANGLIAN ELECTRONICS CO., LTD., NO.328,Qishan Road, Hengxi Industrial Zone, Yinzhou District, P.C.315131Ningbo, China, tianbo@tianbo-relay.com
    Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €1,09
    including VAT 19% , [plus shipping]
    Quantity Price*
    10-24 Items €1,05
    25-99 Items €0,98
    100+ Items €0,84

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
