Tonebender MK-II Style Circuit Board Vintage

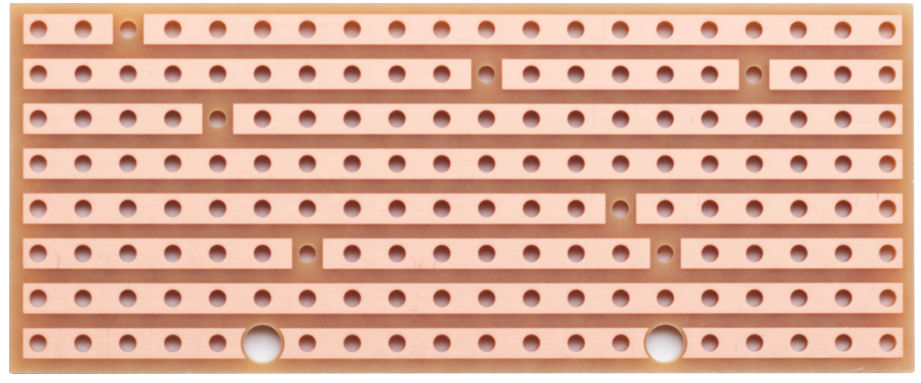

MKII fuzz circuit board made with a phenolic substrate for an even closer match to the vintage production boards. Phenolic boards are found in many vintage electronics before the use of fiberglass became common. This board is a recreation of the circuit board found in Tone Bender Professional MKII pedals. When drawing the layout, an original board was closely referenced to ensure a proper match and fit. Since the MKII boards were cut from stripboard, this board follows the same format but is completely ready for soldering with precut traces and drilled mounting holes.

The build style is very straightforward on the Mk2. It is a standard stripboard build and follows a very linear circuit path across the board. The traces are gold plated making soldering easier than most stripboards. Additionally the plating provides protection from corrosion. Size: 78x32mm.
