Tonebender Mk.3 Mk.4 Style Board

Tonebender Mk.3 Mk.4 Style Board

(0 reviews)

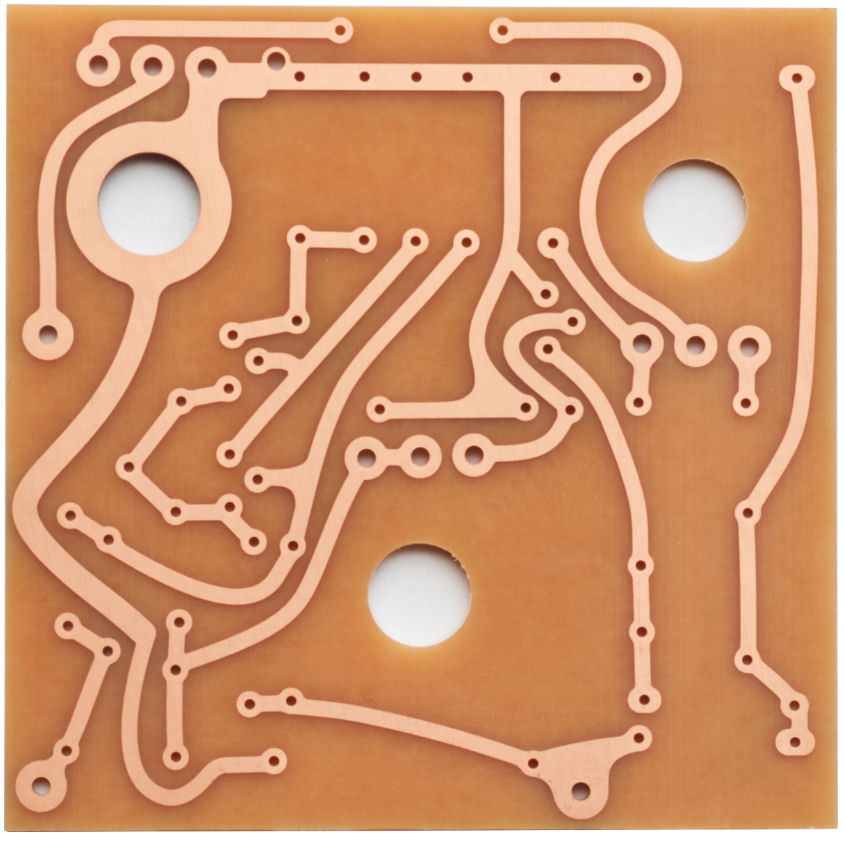

MKIII & MKIV fuzz circuit board made with a phenolic substrate for an even closer match to the vintage production boards. Phenolic boards are found in many vintage electronics before the use of fiberglass became common.

This board is a recreation of the circuit board found in Vox Tone Bender MKIII pedals. The board is styled after the non-reverse version that can also be found in the Park Fuzz Sound, Rotosound Fuzz, and the MKIV Tone Bender. When drawing the layout, original boards were closely referenced to ensure a proper match and fit. The copper traces have a surface treatment providing protection from corrosion.

This board uses a unique PCB mount potentiometer Omeg PC-ANG 100k lin. A matching enclosure P-HROTO-1 can be used with the board to complete a vintage style fuzz build.

SKU SKU 74804
Weight 5,00 g
Our price: 9,85
including VAT 19% , [plus shipping]
 Delivery time: 4-5 days*
