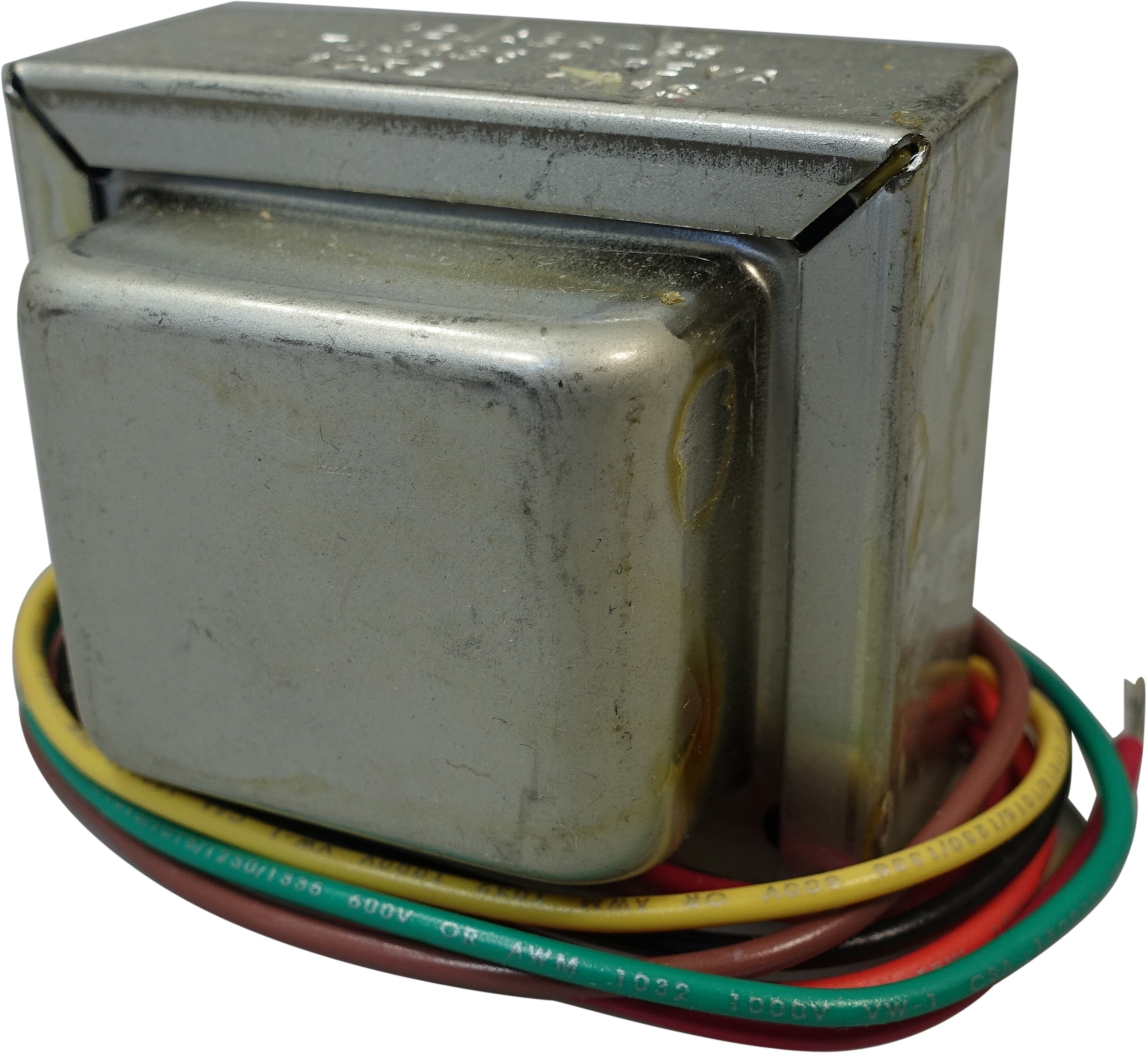

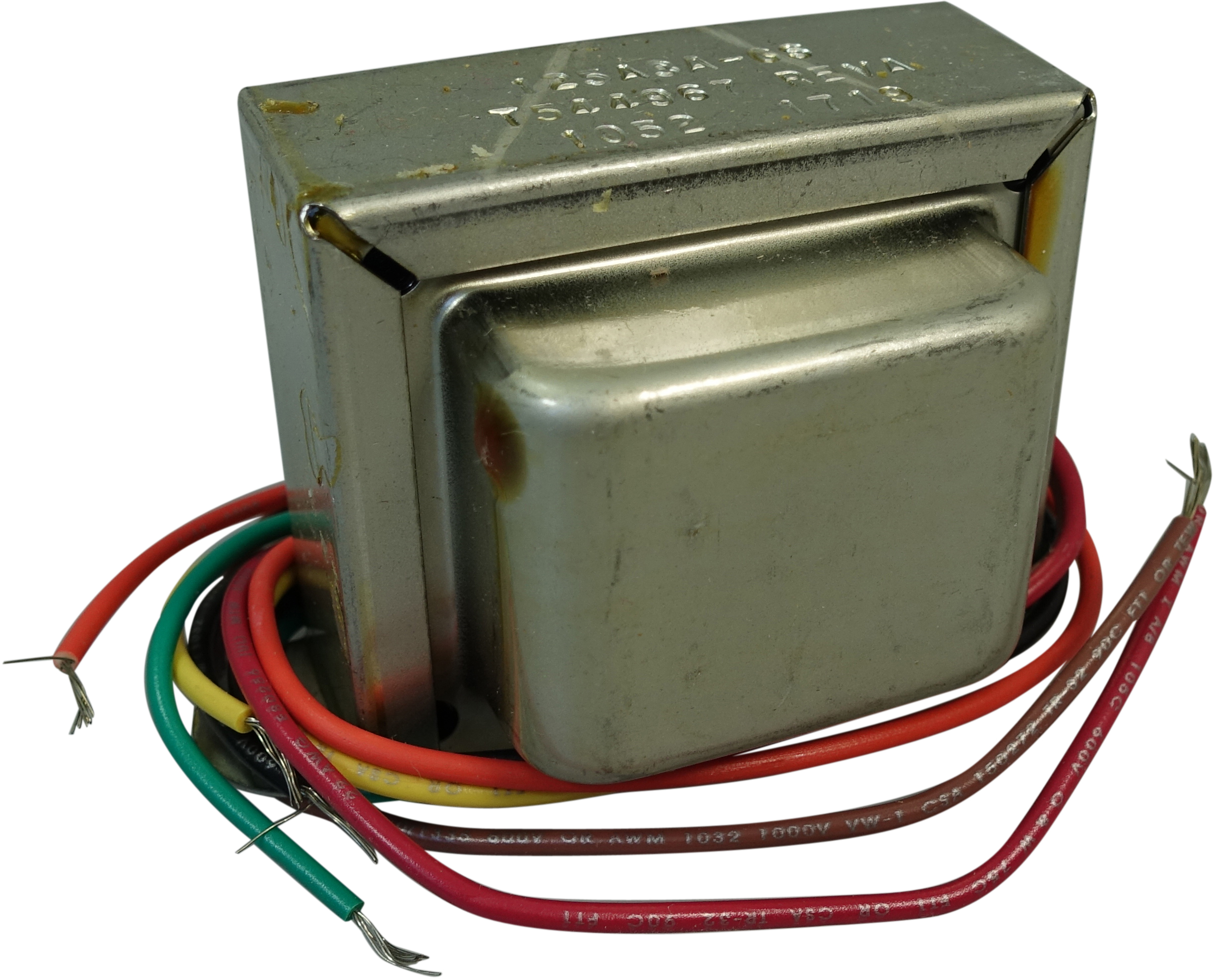

Transformer T-OP-125A3A-GS

Output transformer SE (single ended) 1x6V6, 4, 8, 16 Ohms. Grand Stack version with more iron, thus more power, more bass and finally more tone! 60Hz - 25KHz +-1.5dB ! Perfect for Hifi applications. Works for Fender Champ, Tweed Champ, Blackface Champ and Tweed Princeton 5F2-A. Made in USA.

secondary impedance : 4, 8, 16 Ohmsprimary impedance: 8.2k Ohm
primary current: max. 50mA
Can also be used with a EL84
Mounting on 3,125 inch
overall dimensions 94,5mm x 64mm x 58mm (WxDxH)
US-MADE

Primary:
HT Brown
A Red

Secondary:
0 Ohm Black
4 Ohm Green
8 Ohm Yellow
16 Ohm Orange
