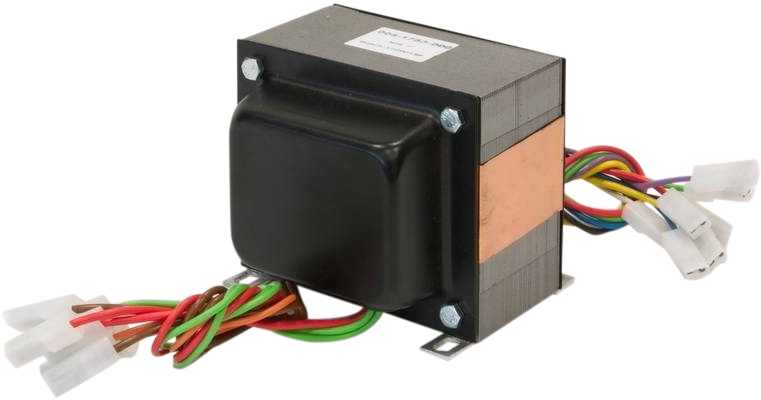

Transformer T-PWR-004-1753-000

Mains transformer for Fender Blues DeVille, Rod Rod DeVille and Fender Super-Sonic 60 Head and Fender Super-Sonic 60 Combo, 93 Super and 93 Concert amps.

Suitable for all primary voltages: 100V, 120; 220V, 230V, 240V
Dimension: WxHxD: 105 x 91 x 106
Mounting on : 79 x 79-87 (oblong hole)


Primary:
0V Red (BLACK/RED)
120V Green (BLACK/GREEN)

0V Yellow (BLACK/YELLOW)
100V White (WHITE)
110V Blue (WHITE/BLACK)
120V Black (BLACK)

Secondary:
360V Red (RED)
0V Red (RED)

28V Brown (BROWN)
0V Green/Yellow (BROWN/YELLOW)
28V Brown (BROWN)

6,3V Green (GREEN)
0V Green (GREEN)

(colors in brackets denotes original colors)

Connection in Blues Deville for 230V:

Primary:
0V Red (BLACK/RED) to CP11
120V Green (BLACK/GREEN) to CP8

0V Yellow (BLACK/YELLOW) to CP9
100V White (WHITE) to CP12
110V Blue (WHITE/BLACK) to CP25
120V Black (BLACK) to CP13

Secondary:
360V Red (RED) to CP14
0V Red (RED) to CP15

28V Brown (BROWN) to CP16
0V Green/Yellow (BROWN/YELLOW) to CP17
28V Brown (BROWN) to CP18

6,3V Green (GREEN) to CP19
0V Green (GREEN) to CP20

(colors in brackets denotes original colors)
Connection in Hot Rod DeVille for 230V operation:

Primary:
0V Red (BLACK/RED) to CP3
120V Green (BLACK/GREEN) to CP7

0V Yellow (BLACK/YELLOW) to CP8
100V White (WHITE) to CP9
110V Blue (WHITE/BLACK) to CP4
120V Black (BLACK) to CP10

Secondary:
360V Red (RED) to CP11
0V Red (RED) to CP12

28V Brown (BROWN) to CP15
0V Green/Yellow (BROWN/YELLOW) to CP16
28V Brown (BROWN) to CP17

6,3V Green (GREEN) to CP13
0V Green (GREEN) to CP14

(colors in brackets denotes original colors)
