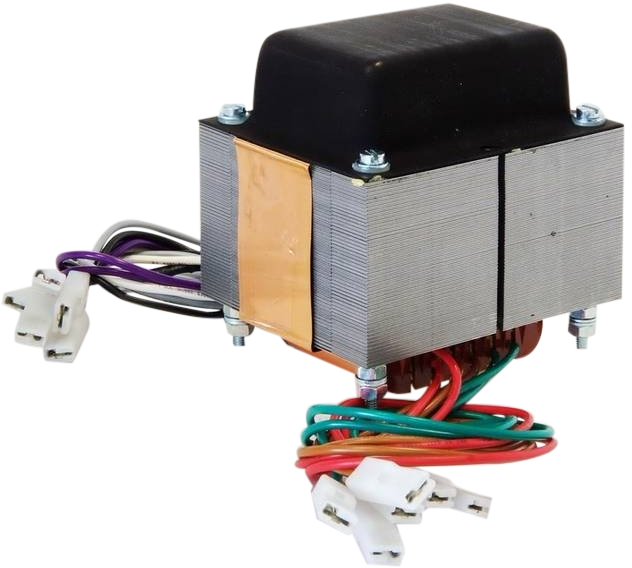

Transformer T-PWR-004-7395-000

MAINS transformer for: Fender® Hot Rod/Blues Deluxe (PR246)

It is also used in the Hot Rod Deluxe III (PR1110), Blues Deluxe Reissue (PR658) and 1968 Custom Vibrolux Reverb.

Primary 230V, 240V

Lamination 3 3/4 inch, Stack 2 inch

Blues Deluxe:
Primary:
Viol Thermo to CP11
Viol Thermo to CP6
0V Black to CP7
230V White to CP25
240V Grey to CP13

Secondary:
335V Red to CP14
0V Red to CP15

40V Brown to CP16
0V Brown to CP17

6,3V Green to CP19
0V Green to CP20

Hot Rod Deluxe:
Primary:
Viol Thermo to CP3
Viol Thermo to CP7
0V Black to CP8
230V White to CP4
240V Grey to CP10

Secondary:
335V Red to CP11
0V Red to CP12

40V Brown to CP15
0V Brown to CP16

6,3V Green to CP13
0V Green to CP14


Blues Deluxe Reissue:
Primary:
Viol Thermo to P3
Viol Thermo to P5
0V Black to P6
230V White to P4
240V Grey to P9

Secondary:
335V Red to P11
0V Red to P12

40V Brown to P15
0V Brown to P16

6,3V Green to P13
0V Green to P14
